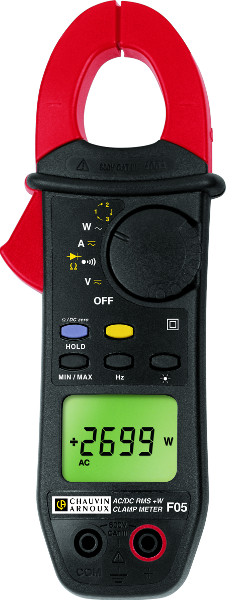

AEMC F05 Clamp-On Meter
|
Item Number: 2129.53
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2129.53
|
|
AEMC F05 Clamp-On Meter The Model F05 is a high performance clamp-on meter built into a rugged compact sized case, with exceptional ergonomic design and extraordinary measurement possibilities. Integrating a fast microprocessor sampling at a high rate, the Model F05 is completely automatic and performs TRMS measurements on the most distorted waveforms.
The Model F05 automatically detects AC or DC in Voltage and Current. It has a V-Live™ function to warn of the use of live circuits or elevated voltages. The Model F05 can measure in-rush currents from 1 cycle up to 10 cycles and frequency. It also measures Phase Rotation (using only two leads!), Power Factor and Power. Other features include: auto-ranging, 4000-count display and Auto-Off. Features
- Hand-held size, ultra practical and ergonomic design
- TRMS measurement through fast sampling - accurate on non-linear waveforms
- 4kHz Bandwidth
- 3.5 Crest Factor at 600Arms and 900Vrms
- Peak function captures 500µs signals
- Measure Inrush Current on 0.5, 1, 2.5, 5 and 10 cycles (15 to 70Hz)
- Min/Max automatic capture of extreme values at 100ms samples
- Measure V, A, Ohms, kW, Hz, Phase Rotation, AC + DC
- Continuity at programmable buzzer threshold from 1 to 40Ω
- Selectable V-Live™ function (buzzer) warns of live circuit
- Automatic DC current zeroing
- Back-lit LCD
- Battery life displayed directly in hours at the push of a button
- EN 61010-1, EN 61010-2-032, 600V Cat. III
- Includes soft carrying case and test leads
.jpg)

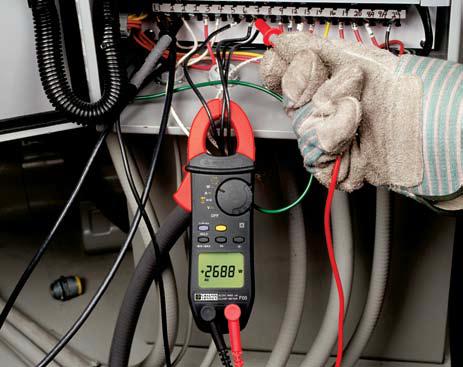

Model F05 monitoring volts, amps and watts on a control panel.
Applications
- Electrical maintenance
- Electrical power distribution
- Safety lighting system maintenance
- Automotive test troubleshooting
- Industrial maintenance
- HVAC

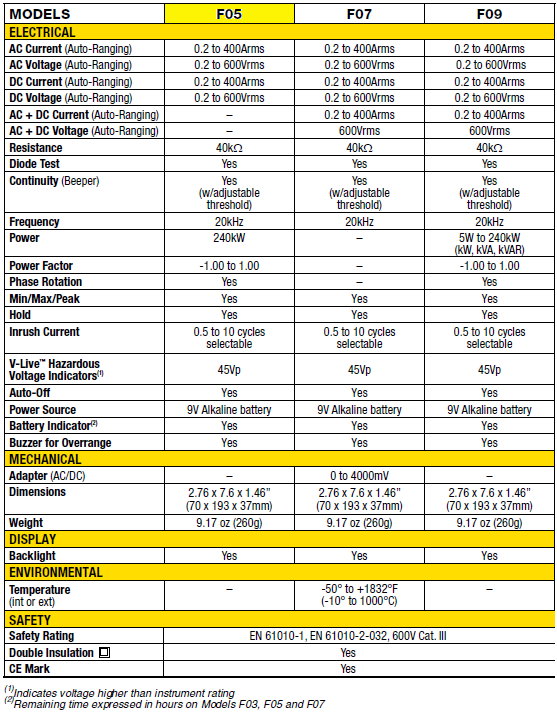

Technical Specifications
.jpg)

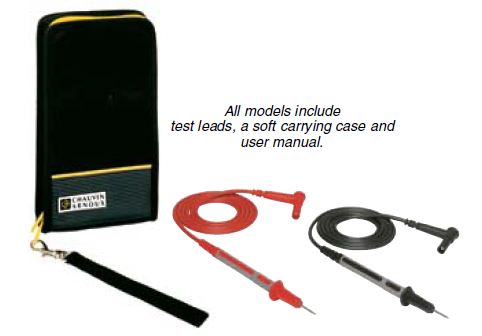

Accessories
