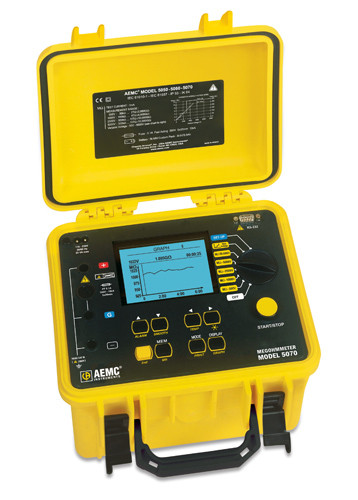

AEMC 5070 5000V Digital/Analog & Graphical Megohmmeter
The Megohmmeter Model 5070 is a fully automated 5000V graphical insulation tester. Selectable and programmable test voltage (40 to 5100V). Programmable temperature correction of resistance readings. The Model 5070 is the only megohmmeter to offer both a graphical plot of the test right on the instruments, as well as a digital presentation of the test results. It has a large graphic display with five line alphanumeric display and graph. It also offers the ability to program up to three step voltage profiles, each containing up to five steps. The Model 5070 has an RS-232 port which provides the ability to configure the unit and run the test from a PC. Test results can be generated directly to a printer using the DataView® graphing and analysis software.  Features
- True Megohmmeter® with selectable test voltage from 40 to 5100V, and fixed test voltages of 500V, 1000V, 2500V and 5000V
- Insulation measurements from 30kÙ to 10TÙ
- Automatic step voltage with programmable step and dwell times - three profiles can be stored, each with up to five steps
- Programmable temperature compensation of resistance readings
- Automatic calculation of DAR, PI and DD values
- Direct measurement and display of Resistance, Test Voltage, Run Time, Capacitance and Leakage Current
- Automatic test inhibition if live voltage is present
- Automatic discharge and display of discharge voltage

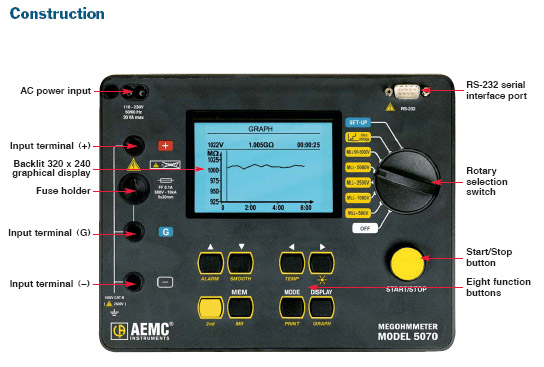

- Large graphic display with five line alphanumeric display and graph of all test results
- Rugged weatherproof field case
- RS-232 interface for direct printing of results
- 128kB memory for storing field test data

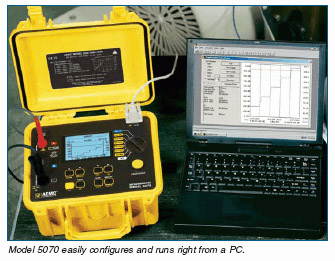

- Remote operation from PC
- Includes DataView® software
 Applications

DataView® Software for Model 5070
Features

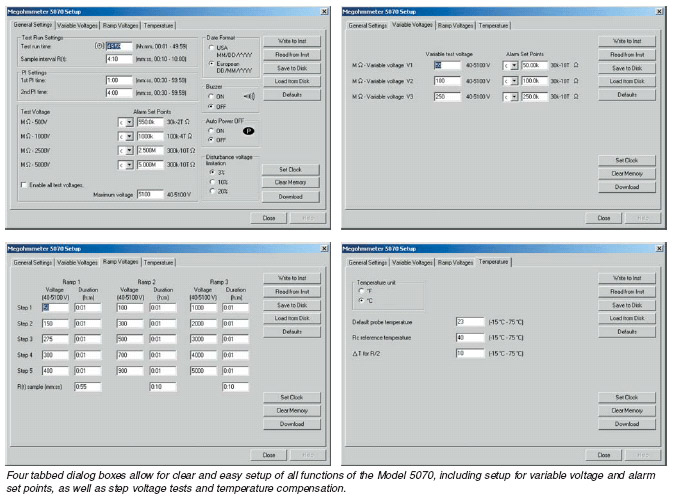

Configure all functions of the Megohmmeter Model 5070 Print reports of all test results

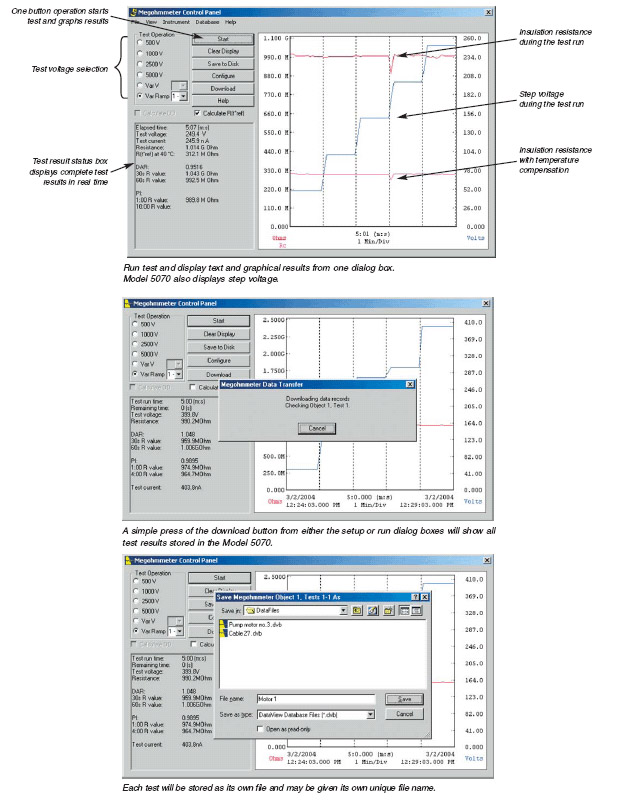

- Select test voltage and run tests from your computer with a simple click and execute process
- Capture and display data in real time
- Retrieve data from the instrument’s memory: Over 1500 insulation resistance measurements
- Display DAR, PI and DD ratios
- Plot graphs of manual and timed tests
- Include your analysis in the comments section with the report
- Store a library of setups for different applications
- Certification of results through report generation
Minimum System Requirements
- Windows® 98/2000/ME/XP or Windows® NT 4.0
- 128MB of RAM (256MB recommended) for Windows® 98/2000/ME or Windows® NT 4.0
256MB of RAM for Windows® XP
- 35MB of hard disk space (200MB recommended)
- CD Rom Drive

|
The Digital/Analog Megohmmeter Model 5050 is the latest design in 5000V insulation testers. Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR), Polarization Index (PI) and Dielectric Discharge (DD).
|
The Digital/Analog Megohmmeter Model 5060 is the latest design in 5000V insulation testers. Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR), Polarization Index (PI) and Dielectric Discharge (DD).
|
