AEMC 5060 5000V Digital/Analog Megohmmeter with PC Interface
|
Item Number: 2130.21
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2130.21
Product Options
* denotes required field
NIST Calibration - Insulation Tester*
AEMC Insulation Tester Lead Selection
* Whole number only
|
|

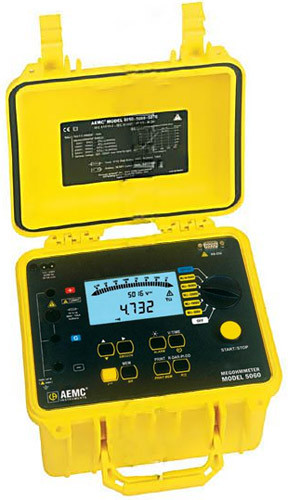

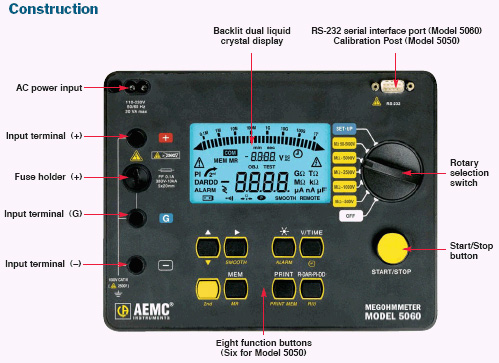

AEMC 5060 5000V Digital/Analog Megohmmeter

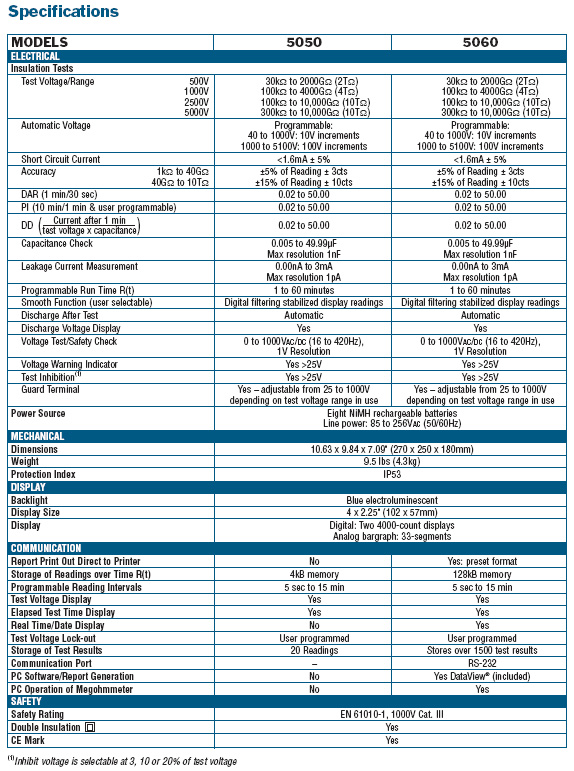

The Digital/Analog Megohmmeter Model 5060 is the latest design in 5000V insulation testers. Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR), Polarization Index (PI) and Dielectric Discharge (DD). The Model 5060 displays the test voltage, insulation resistance and the leakage current during the test. Capacitance of the sample and discharge voltage present at the test leads is displayed at the conclusion of the test. This meter is designed with the highest level of built in safety features. The Model 5060 can be operated from an internal rechargeable battery system or from an AC line power. The Model 5060 offers additional functionality in that an RS-232 port provides the ability to configure the unit from a PC and run the test from the PC. Test reports can be generated directly from the instruments to a printer or through the PC using the DataView® graphing and analysis software.  Features
- True Megohmmeter®
- Test voltage combination of 500V, 1000V, 2500V and 5000V
- Insulation measurements from 30kOhm to 10TOhm
- Adjustable and programmable test voltage (40 to 5100V)
- Automatic calculation of DAR, PI and DD values
- Direct measurement and display of Capacitance and Leakage Current
- Display resistance, test voltage and run time
- Programmable test run times and PI ratio times
- Smooth and Alarm functions
- Automatic test inhibition if live sample (>25)
- Automatic discharge and display of discharge voltage
- Large dual-display with time, voltage and measurements shown
- Rugged weatherproof field case
- RS-232 interface for direct printing of results
- 128kB memory for storing field test data

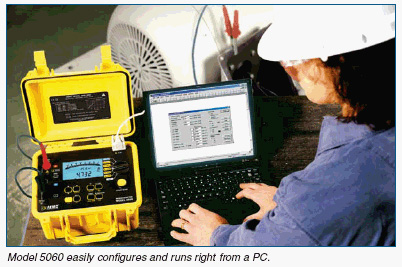

- Remote operation from PC
- Includes DataView software
 Applications

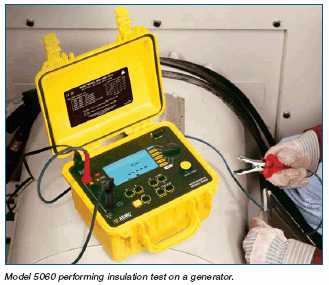

- Test insulation on cables, transformers, motors, generators, insulators and wiring installations
- High resistance or absorption tests
- Spot reading tests
- Timed resistance measurements
- Dielectric Absorption Ratio (DAR) and Polarization Index (PI) tests
- Multi-layer insulation testing (DD)
- Test old or water damaged installations over long time runs

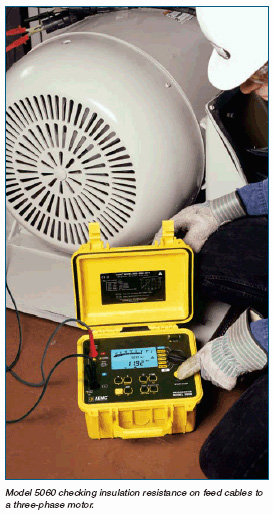

- Motor insulation resistance measurements
- Computer controlled production line testing
- Predictive maintenance by storing results in PC for trend analysis
- User selectable voltage testing to provide application specific testing

DataView® Software for Model 5060
Features
Configure all functions of the Megohmmeter Model 5060 Print reports of all test results

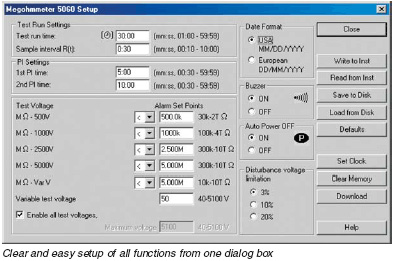

- Select test voltage and run tests from your computer with a simple click and execute process

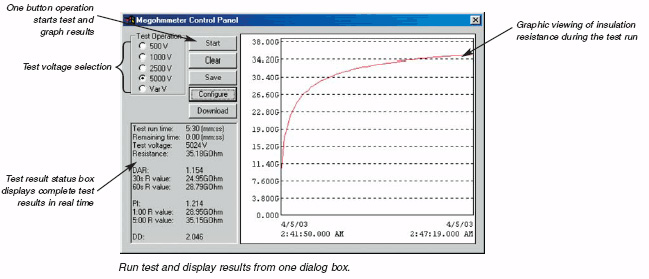

- Capture and display data in real time
- Retrieve data from the instrument’s memory Over 1500 insulation resistance measurements
- Display DAR, PI and DD ratios
- Plot graphs of manual and timed tests
- Include your analysis in the comments section with the report
- Store a library of setups for different applications
- Certification of results through report generation
Minimum System Requirements
- Windows® 98/2000/ME/XP or Windows® NT 4.0
- 128MB of RAM (256MB recommended) for Windows® 98/2000/ME or Windows® NT 4.0
256MB of RAM for Windows® XP
- 35MB of hard disk space (200MB recommended)
- CD Rom Drive

|
The Digital/Analog Megohmmeter Model 5050 is the latest design in 5000V insulation testers. Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR), Polarization Index (PI) and Dielectric Discharge (DD).
|
The Megohmmeter Model 5070 is a fully automated 5000V graphical insulation tester. Selectable and programmable test voltage (40 to 5100V). Programmable temperature correction of resistance readings.
|
