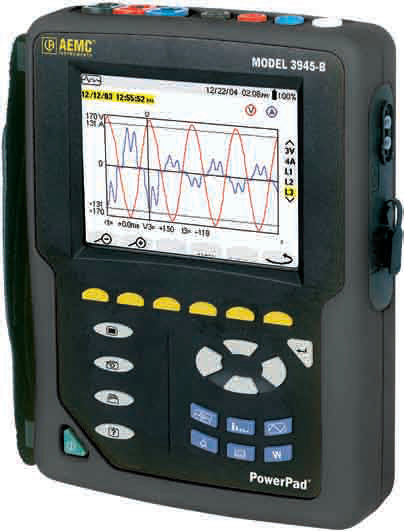

AEMC 3945-B Three-Phase Power Pad Quality Analyzer
Our Price: Discontinued Replaced by AEMC 8333
Item Number: 2130.74
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2130.74
|
|
AEMC 3945-B Three-Phase Power Pad Quality Analyzer
The PowerPad is a hand-held three-phase power and power quality meter with a large easy-to-read graphical color display. Measurements are displayed numerically and graphically with colored waveforms. The meter is menu driven with pop-up functions that are activated at the push of a button. All necessary measurements are available for a comprehensive power system check or analysis to 830Vrms; 6500Arms with a complete family of clamp-on and flexible probes. The PowerPad has a logging function, a transient capture function, an event capture function, an optical RS-232 and an advanced software (DataView), which can pilot the PowerPad and provide comprehensive reports. Features
- True RMS single-, two- and three-phase measurements at 256 samples/cycle, plus DC

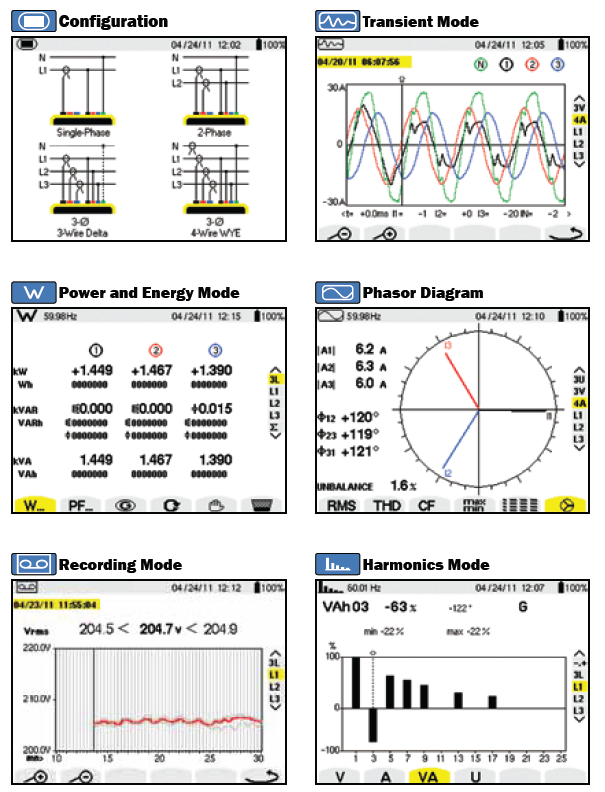

- Real-time color waveforms
- Easy-to-use on-screen setup
- True RMS voltage and current measurements
- Measures DC volts, amps and power
- Display and capture voltage, current and harmonics to the 50th order, including direction in real time
- Phasor Diagram Display
- VA, VAR and W per phase and total
- KVAh, VARh and kWh
- Neutral current display for three-phase
- Transformer K-factor display
- Power Factor displacement PF display
- Captures up to 50 transients
- Short-term flicker display
- Phase unbalance (current and voltage)
- Harmonic Distortion (total and individual)
Applications
- Verification of power distribution circuits
- Measurement and recording of power system quality (kW, VA, VAR)
- Energy metering (kVAh, VARh, kWh)
- In plant troubleshooting of power distribution panels and individual machinery
- Monitor pad mount transformers
- Determine harmonic problems originating from source or load
- Monitor phase balances
- Determine transformer K-factor
- And much, much more

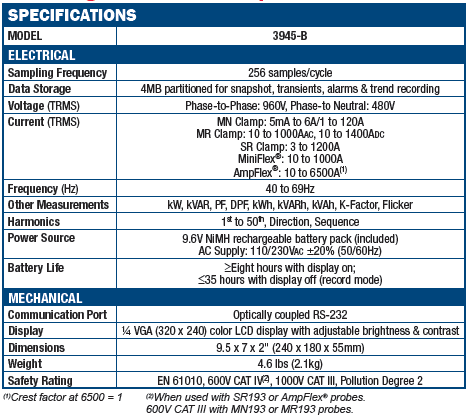

Technical Specification
.jpg)
.jpg)

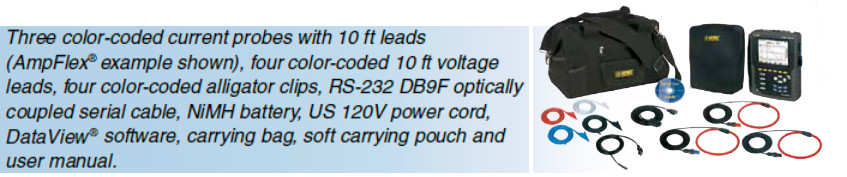

Includes
.jpg)
|
