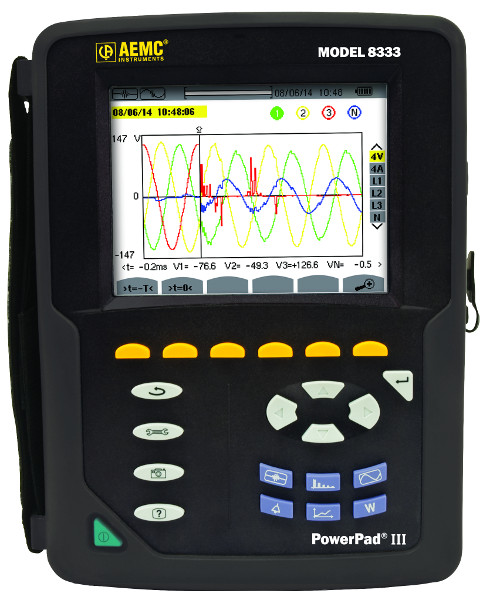

AEMC 8333 Three-Phase Power Quality Analyzer

The AEMC Model 8333 power analyzer is simple to use and it allows technicians to perform diagnostics and power quality work on single-phase or three-phase systems. The Model 8333 has 2 GB of memory that allows users to store up to 12 screen shots, up to 51 captured transients that contain 4 cycles for each active input, and 4,000 alarm events from up to 10 different parameters.

Features

Measurement of True RMS voltages up to 1000Vrms AC / 1200VDC for single or three phase networks
Measurement of True RMS currents up to 10kArms (sensor dependent)
Measures up to 5000ADC with optional AC/DC Current Probe Model J93
Calculation of neutral current and voltage
Frequency measurement (40 to 70Hz systems)
Records and displays trend data as fast as once per second for one month up to 29 variables
Captures up to 51 transient occurrences on all V and A inputs
Measures harmonics for voltage, current or power up to the 50th harmonic
Record disturbances such as swells, sages and interruptions, exceedence of power and harmonic thresholds
Measures energy VAh, VARh & Wh and reports quantities according to IEEE 1459 standards (P; Q₁; D; N; S)
65µs/sample transient recording
FREE DataView^® software is included for configuring real-time display and report generation

Applications

Verification of transmission and distribution systems
In-plant troubleshooting of power panels and individual machinery power usages
Monitor pad mount transformers and phase unbalances
Determine harmonic problems
Determine transformer K-Factor
Measure energy usage (kVAh, VARh, kWh)

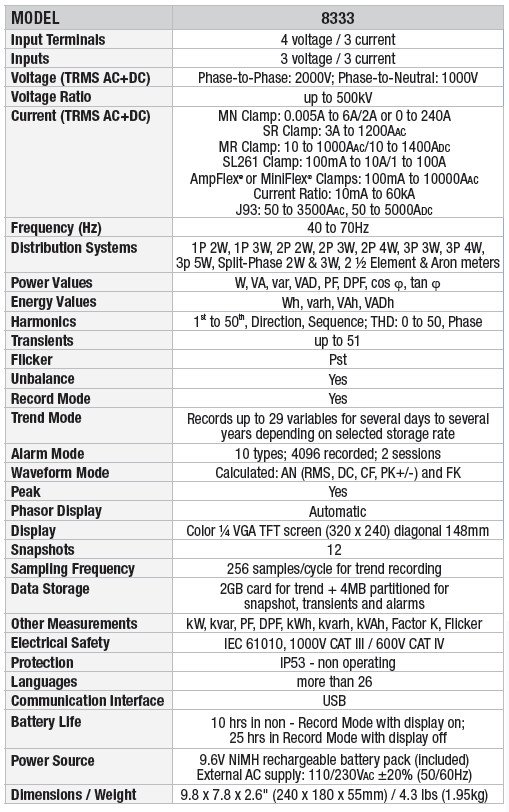

Technical Specifications

AEMC 8333 Data Sheet

AEMC 8333 Three Phase Power Quality Analyzer
