Additel ADT 949 Hydraulic Ultra-high Pressure Test Pump (40,000 PSIG)
|
Item Number: ADT949
Manufacturer: Additel Corporation
Part Number: ADT949
Product Options
* denotes required field
ADT 949 Pressure Port Selection*
ADT 949 Optional Accessories
* Whole number only
|
|

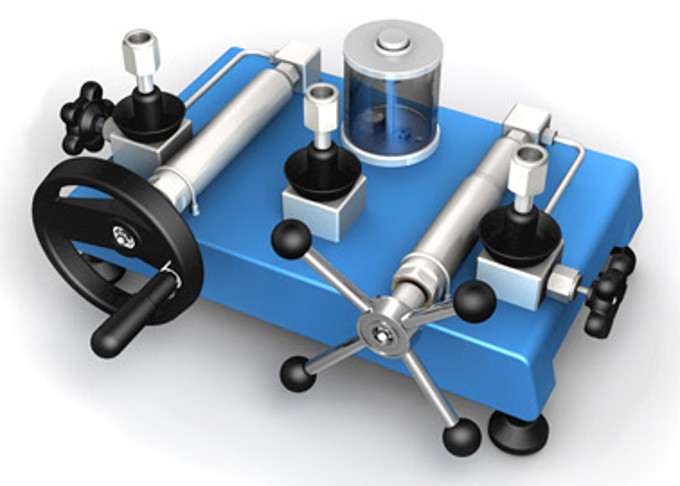

Additel ADT 949 Hydraulic Ultra-high Pressure Test Pump
Additel ADT 949 Features:
- Generate Ultra-high Pressure
Generate pressure up to 40,000 psi (2800 bar)
- Durable and Minimal Maintenance
Patented screw press technolgoy, without non-returning valve inside that is usually used on troublesome hand pumps
- Easy-to-use
With patented screw press technology, the high pressures can be generated easily, increased and decreased smoothly
- Extremely Low Leakage
Patented screw press technology, instead of leaking, troublesome, non-returning hand pumps
- Three pressure ports
Additel ADT 949 Specifications:
| Media |
Oil |
| Generated Pressure Range |
85% vacuum to 40,000 PSI (2,800 bar) positive pressure |
| Material |
Ram/adapters: SST
Body: SST/aluminum
Seals: Buna-N |
| Connection |
Test Gauge Connection: Positional Autoclave F-250-C. 9/16" - 18 UNF female
Reference Gauge Connection: Positional Autoclave F-250-C, 6/16" - 18 UNF female
1/2BSP female and M20X1.5 female connections are available upon request |
| Dimensions |
Height: 9.1" (230 mm)
Base: 20.5" (520 mm) x 14.2" (360 mm) |
| Weight |
35.5 lbs (16 kg) |
| Warranty |
1 Year |
|
The Additel ADT 681 has state-of-the-art silicon pressure sensors which provide accurate, reliable, and a economic solution for a wide range of pressure applications. They are loaded with functionality and extremely easy to use.
|
The ADT104 is a 1/4HP male (Autoclave M-250-C) to various connectors. Designed for the Additel ADT949 pump.
|
The Additel ADT 672 has state-of-the-art silicon pressure sensors which provide a pressure calibration solution for gauges, transmitters, and switches over a wide pressure range.
| |
