Additel ADT 672 Digital Pressure Calibrator
|
Item Number: ADT672
Configuration: -05-N
Manufacturer: Additel Corporation
Part Number: ADT672
Product Options
* denotes required field
Accuracy Selection*
You must select an option for 'Accuracy Selection'.
Additel ADT 672 Pressure Range Selection*
You must select an option for 'Additel ADT 672 Pressure Range Selection'.
Additel ADT 672 Pressure Port Type*
You must select an option for 'Additel ADT 672 Pressure Port Type'.
* Whole number only
|
 Additel ADT 672 Digital Pressure Calibrator Additel ADT 672 Digital Pressure Calibrator |
|
Additel ADT 672 Digital Pressure Calibrator
The 672 series comes with advanced microprocessor technology and state-of-the-art silicon pressure sensors, and it provides a pressure calibration solution for gauges, transmitters, and switches over a wide pressure range. The 672 is a portable device and can measure pressure precisely with a built-in pressure sensor, as well as read the current or mV produced by a transducer. It can even supply an excitation voltage to power sensors or transmitters during calibration. In order to reach 0.025% F. S. accuracy up to 10,000 psi (700 bar) and 0.1% F. S. accuracy up to 40,000 psi (2,800 bar), every silicon pressure sensor in our gauges has been
specially aged, tested and screened before assembly. The 672 series precision pressure calibrators are unmatched in performance and reliability.
Additel ADT 672 Features:
- Pressure Measurement Uncertainty:
ADT 672-02: 0.025% FS
ADT 672-05: 0.05% FS
- Pressure ranges to 36,000 PSI (2500 bar)
- Measure mA or V with 0.02% RD + 0.003% FS accuracy
- Power transmitters during test using 24V loop supply
- Pressure Switch Test
- Hart Communication capability
- Advanced temperature compensation
- Dual readout
- Min/Max/Hold to capture changing measurements
- Data Logging
- Large, Easy to read display with 6-digit resolution
- Back lighted display
- Rechargeable battery or AC adapter
- NIST traceable calibration with data (included)
Additel ADT 672 Specifications:
| Accuracy |
ADT 672-02: 0.025% of full scale
ADT 672-05: 0.05% of full scale
>15,000 (1,000 bar): 0.1% FS
|
| Gauge Types |

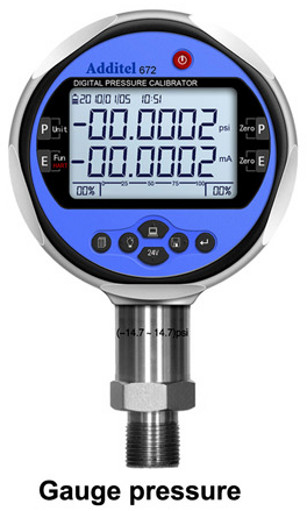

Gauge Pressure
Compound Pressure
Absolute Pressure

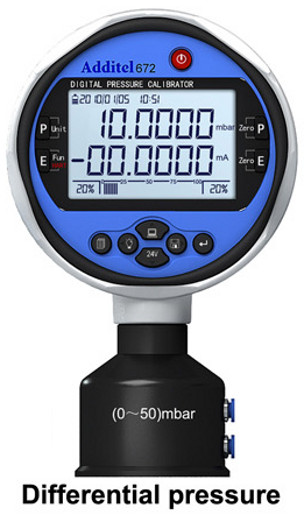

Differential Pressure
|
| Display |
Description: Dual-line 6 full digit FSTN LCD with LED backlight
Display rate: 3.5 readings per second (default setting)
Numerical display height: 16.5mm (0.65")
|
| Pressure Units |
Pa, kPa, MPa, psi, bar, mbar, inH2O, mmH2O, inHg, mmHg, kgf/cm2 |
| Environmental |
Compensated Temperature: 14°F to 122°F (-10°C to 50°C)
Operating Temperature*: 14°F to 122°F (-10°C to 50°C)
*0.025% FS accuracy guarenteed only over the ambient temperature range of 68°F to 79°F (20°C to 26°C)
Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Humidity: <95% |
| Media Compatibility |
0-30 PSI: Clean dry non-corrosive gases
50-36,000 PSI: media compatible with 316L SS |
|
