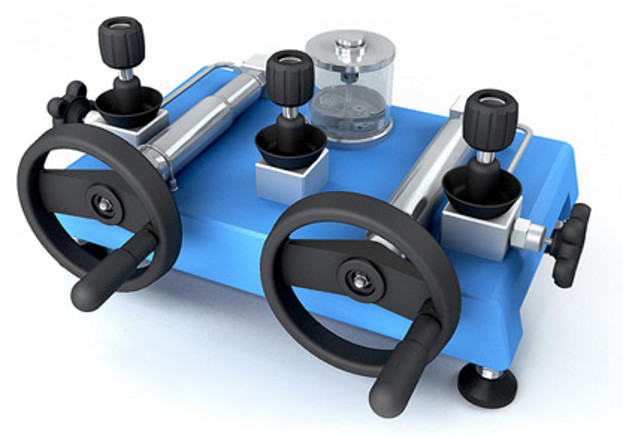

Additel ADT 938 Hydraulic High Pressure Test Pump
|
Item Number: ADT938
Manufacturer: Additel Corporation
Part Number: ADT938
Product Options
* denotes required field
ADT 938 Pressure Port Selection*
ADT 938 Optional Accessories
* Whole number only
|
|
Additel ADT 938 Hydraulic High Pressure Test Pump
Additel ADT 938 Features:
- High Pressure
Generates pressure up to 15,000 PSI (1000 bar)
- Durable and Minimal Maintenance
Patented screw press technology, without non-returning valve inside that is usually used on troublesome hand pumps
- Easy-to-use
With the patented screw press technology, high pressures can be generated easily, increased and decreased smoothly
- Extremely Low Leakage
Patented screw press technology, instead of leaking, troublesome, non-returning hand pump
- Hand-tight Quick Connectors
Allows easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches
Additel ADT 938 Specifications:
| Media |
Deionized water |
| Generated Pressure Range |
12.5 PSI (0.85 bar) vacuum to 15,000 PSI (1,000 bar) positive pressure |
| Material |
Ram/adapters: SST Body: SST/aluminum Seals: Buna-N |
| Connection |
Hand-tight connectors for both test gauge and reference gauge Test gauge connection: 1/4" NPT female, 1/4" BSP female, M20X1.5 female Reference gauge connection: 1/4" NPT female, 1/4" BSP female, M20X1.5 female |
| Dimensions |
Height: 9.1" (230mm) Base: 20.5" x 14.2" (360 mm) |
| Weight |
35.5 lbs (16 kg) |
| Warranty |
1 Year |
|
The Additel ADT 681 has state-of-the-art silicon pressure sensors which provide accurate, reliable, and a economic solution for a wide range of pressure applications. They are loaded with functionality and extremely easy to use.
|
The Additel ADT 672 has state-of-the-art silicon pressure sensors which provide a pressure calibration solution for gauges, transmitters, and switches over a wide pressure range.
|
