Additel ADT 936 Hydraulic High Pressure Test Pump (15,000 PSIG)
|
Item Number: ADT936
Manufacturer: Additel Corporation
Part Number: ADT936
Product Options
* denotes required field
ADT 936 Pressure Port Selection*
ADT 936 Optional Accessories
* Whole number only
|
|

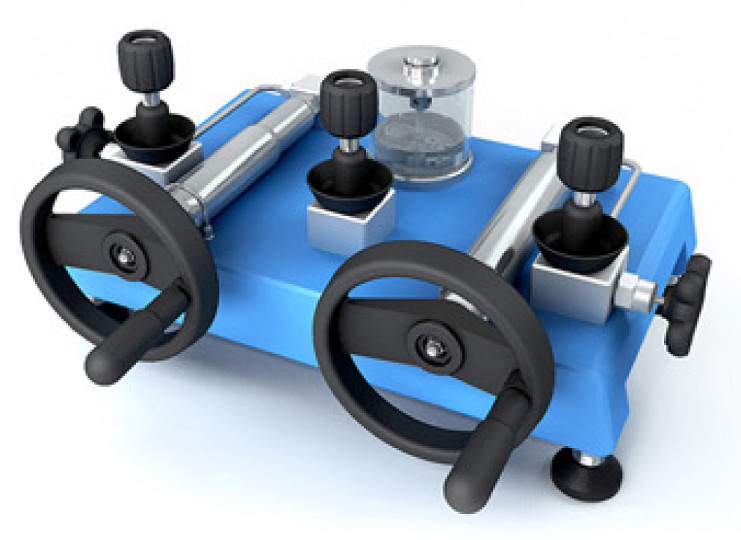

Additel ADT 936 Hydraulic High Pressure Test Pump
Additel ADT 936 Features:
- High Pressure
Generates pressure up to 15,000 psi (1000 bar)
- Good for Calibrating Large Chamber Pressure Gauges
With specially designed shut-off valve, high pressure could be reached through repeat pumping'
- Durable and Minimal Maintenance
Patented screw press technology, without non-returning valve inside that is usually used on troublesome hand pumps
- Easy-to-Use
High pressures can be generated easily, increased and decreased smoothly
- Extremely Low Leakage
Patented screw press technology, instead of leaking, troublesome, non-returning hand pumps
- Hand-tight Quick Connectors
Allows easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches.
Additel ADT 936 Specifications:
| Media |
Oil |
| Generated Pressure Range |
12.5 PSI (0.85 bar) vacuum to 15,000 PSI (1,000 bar) positive. |
| Material |
Ram/adapters: SST Body: SST/aluminum Seals: Buna-N
|
| Connection |
Finger-tight connectors for both test gauge and reference gauge Test gauge connection: 1/4"NPT female, 1/4" BSP female, M20X1.5 female
|
| Dimensions |
Height: 9.1" (230 mm) Base: 20.5" (520 mm) x 14.2" (360mm)
|
| Weight |
35.5 lbs (16 kg) |
| Warranty |
1 Year |
|
