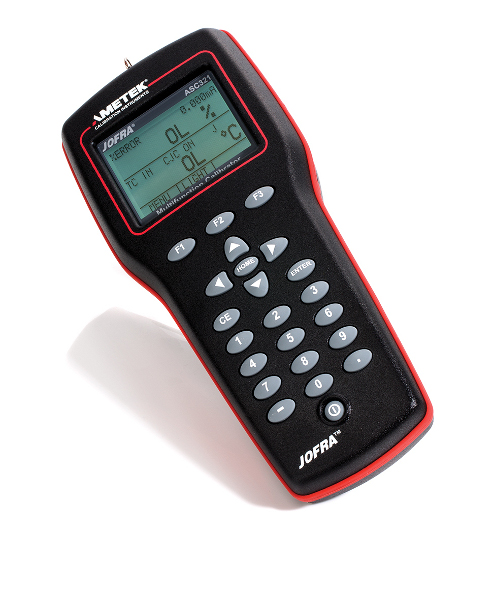

Ametek Jofra ASC321 Advanced Signal Calibrator

Ametek Jofra ASC321 Advanced Signal Calibrator

     The ASC321 is a full documenting calibrator, using predefined work orders from JOFRACAL. This ensures easy documentation and reduces the possibilities for errors when calibrating in the field. The ASC series does more than just calibrate signals. Combined with the APM external pressure module or a JOFRA dry block calibrator, an ASC will calibrate pressure and temperature and, if used together with JOFRACAL, document it as well. For workshop use a DC power supply/charger is available.

Features:

• Multi-function signal calibrator

       With its robust custom housing, the ASC
       series is ideal for both field and workshop
       use. These calibrators are the process engineer’s
       best friend

• Documenting calibrator

      The ASC321 provides a paperless calibration
      flow when combined with our wellknown
      JOFRACAL calibration software

• Input and output

      RTD: 14 types, TC: 13 types, Current: 0-24
      mA DC, Voltage: 0-20 VDC, Frequency: 0 to
     10 Khz, Pulse: train output, Resistance: 5 to
     4000 Ohm

• Simultaneous read-back

      Including isolated read-back from deviceunder-
      test of mA, V and pressure

• Calibrate pressure

      Add on a JOFRA APM pressure module to
      create a full-featured pressure calibrator
      that can perform a semi-automatic leak-test,
      pressure-switch calibration and more

• Calibrate temperature

      Use the ASC together with a JOFRA
      temperature calibrator to add measurement
      channels for sensors or temperature
      switches

• Measure temperature

      The ASC series can be used as a highaccuracy
      thermometer that works with
      RTDs and CvD equations, to obtain true
      temperatures

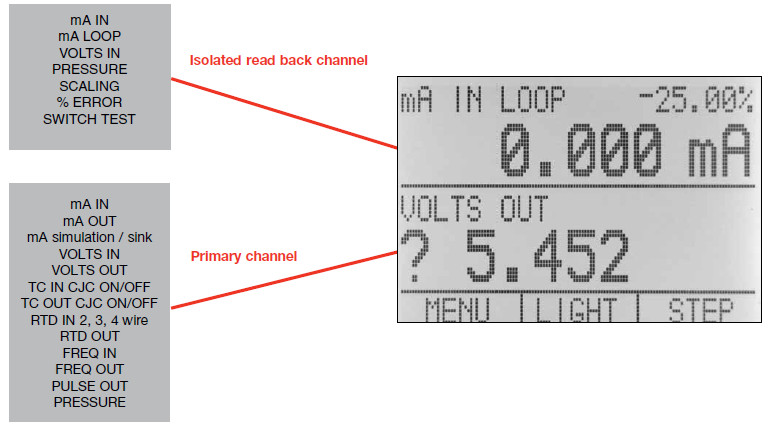

• Optimal read out visability

      Large ClearBrite™ display

• Fast RTD simulation

      Quick enough to work with pulsed transmitters
      and PLCs

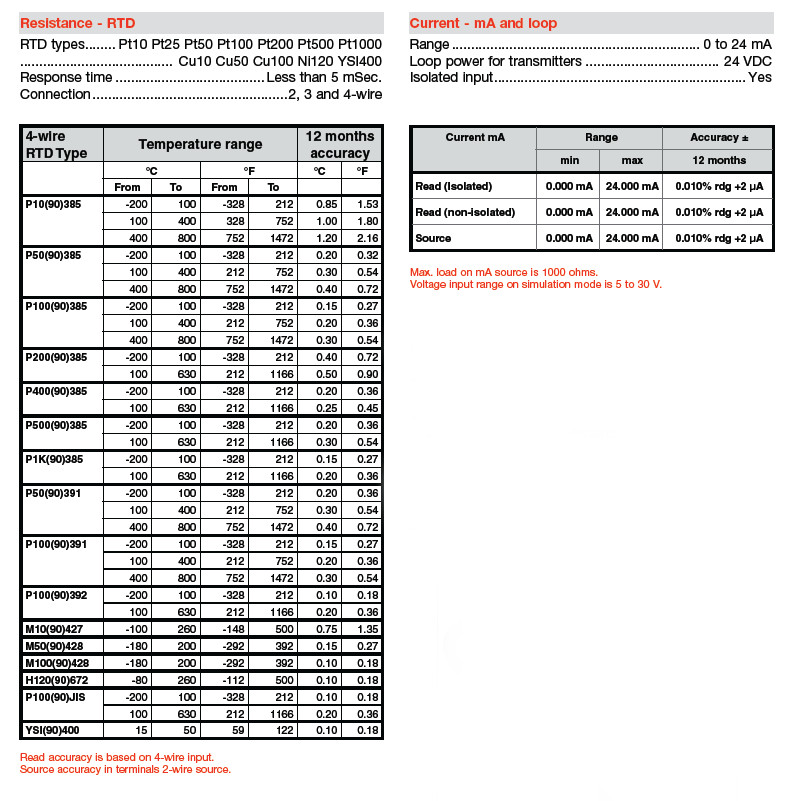

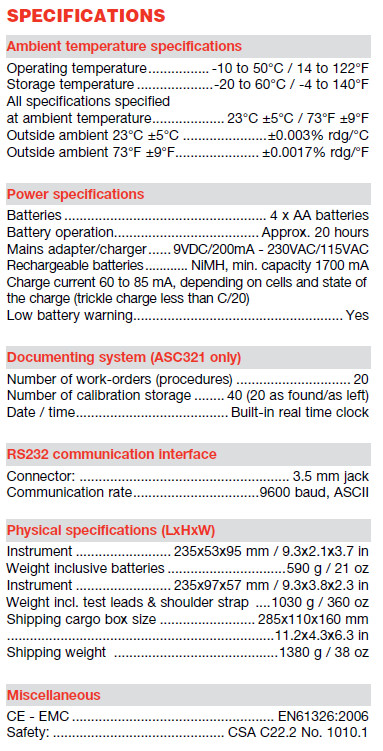

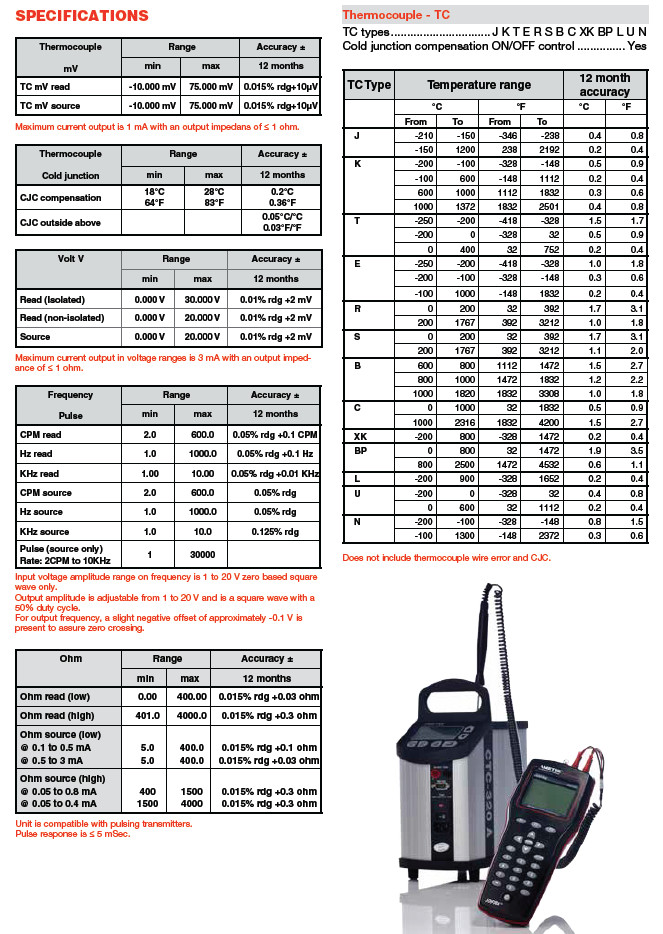

 Technical Specification

Ametek ASC321 Data Sheet
