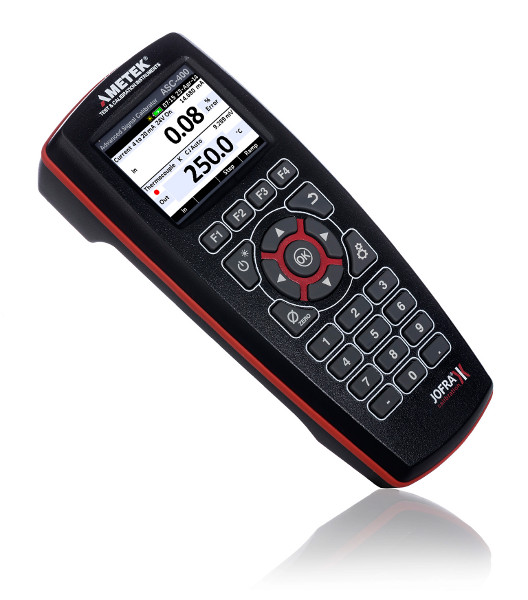

Ametek ASC-400 Process Signal Calibrator

The Ametek ASC-400 can measure and source RTDs, thermcouples, Current, Voltage, Frequency, and Resistance with Pulse train output. Combine it with APM CPF pressure module series or a dry block calibrator to document pressure and temperature tests.

Features

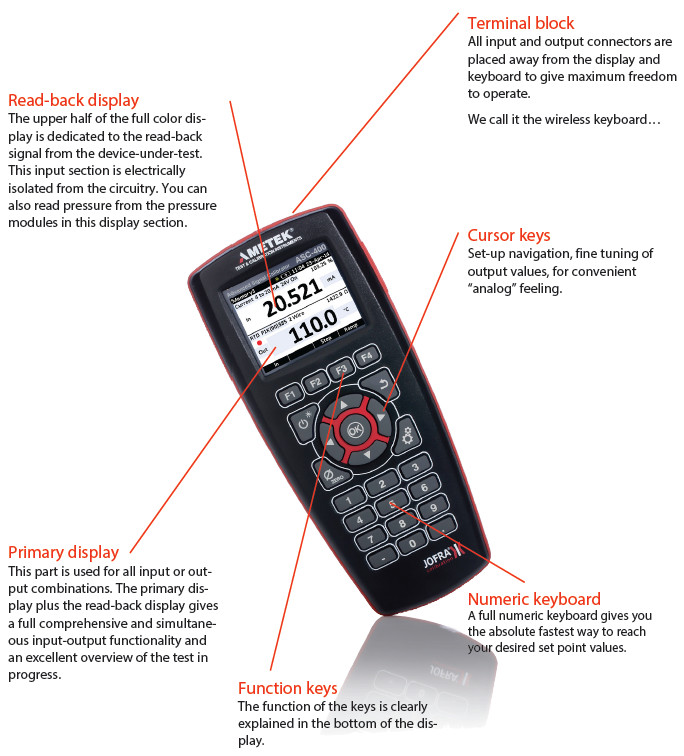

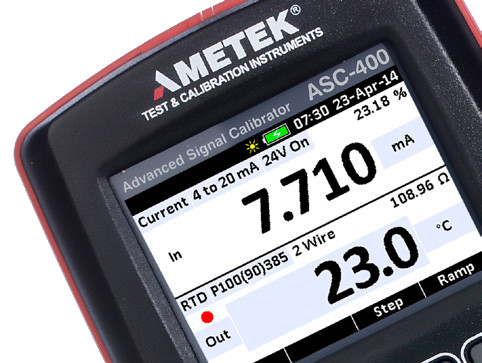

Optimal read out visibility and high accuracy           Large color display and very user friendly interface. The ASC-400                 accuracy is designed to meet high demands of today's modern sensors and            transmitters

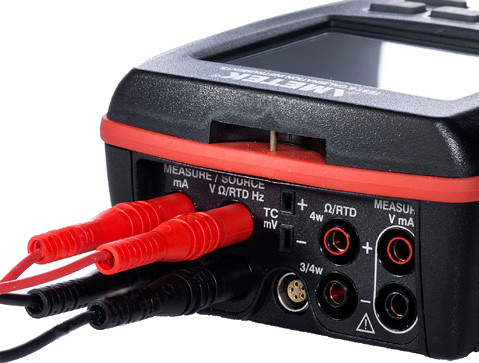

Source and Measure           RTD: 16 different types, Thermocouple: 13 different types, Current 0-24 mA DC, Voltage           0-20 VDC, Frequency 0.05 to 10,000 Hz with Pulse train out-put, Resistance 5 to 4000           Ohms

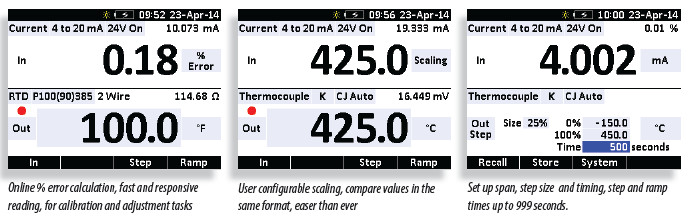

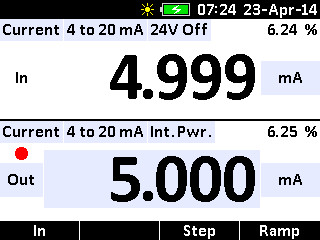

Simultaneoues read-back and fast RTD simulation Includes isolated measurment loop from device-under-test of mA, V, and pressure. The RTD simulation feature works with pulsed transmitters and PLC´s circuits

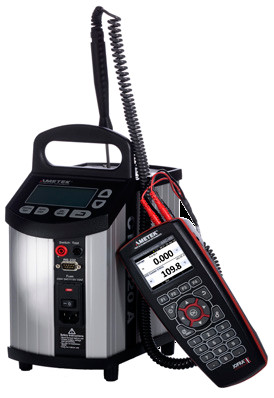

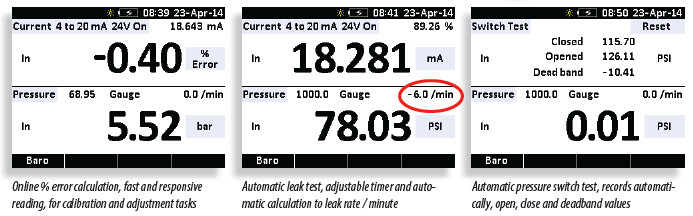

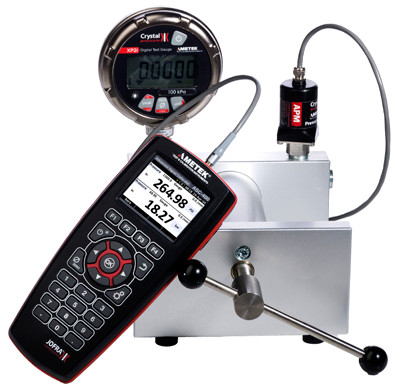

Calibrate temperature and pressure           Add an Ametek APM pressure module and expand the ASC-400 to a full featured pressure calibrator, THis adds an automatic leak-test, pressure-switch calibration and more… Use the ASC-400 along with Ametek-JOFRA temperature dry blocks and add measurement channels for sensors or temperature switches
Measure temperature           ASC-400 can be used as high accuracy thermometer by addding a high accuracy PRT and progamming the ASC-400 with CvD coefficients to obtain true temperature, based on “true ohm” technology!

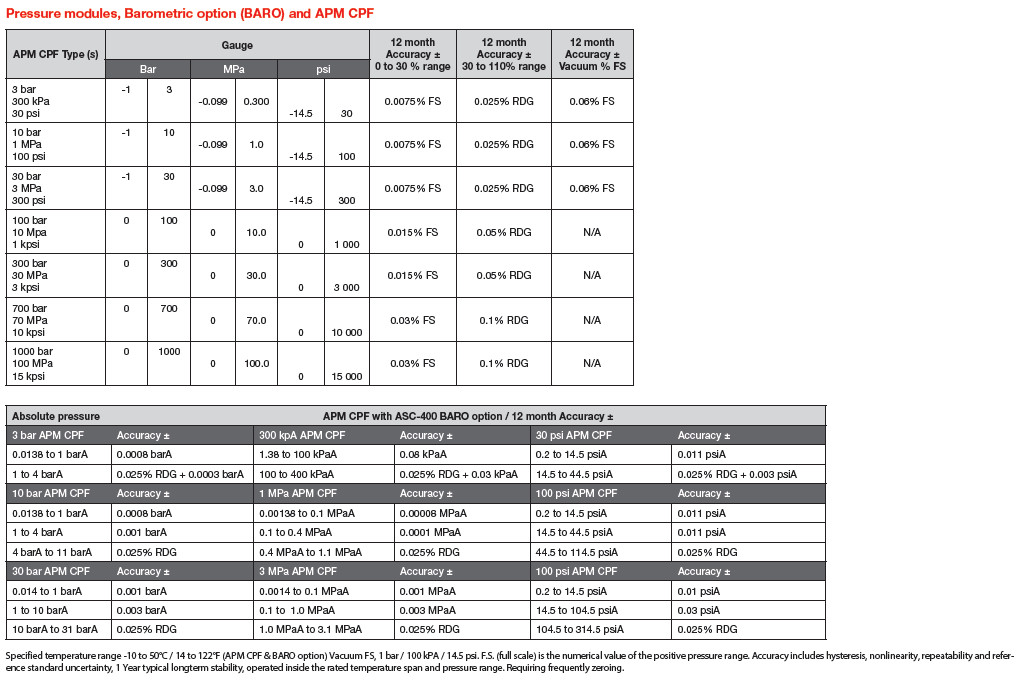

Optional BARO Barometric Pressure Module

The BARO option turns any gauge measuring APM into an absolute barometric pressure measuring device.
Accuracy: ± 0.5 mbarA / 0.00725 psiA Range: 700 to 1100 mbarA / 10.153 to 15.954 psiA
Includes effects of linearity, hysteresis, tempco (-10 to 50°C /14 to 122°F) and stability for 1 year.
The BARO option is must be factory installed.

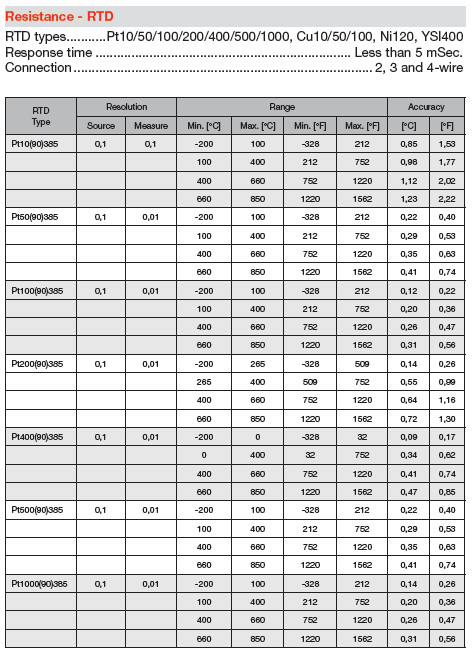

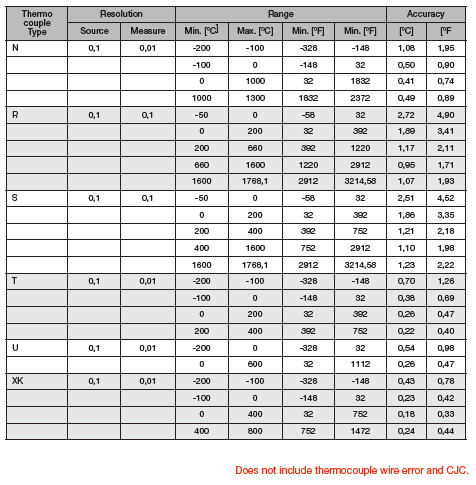

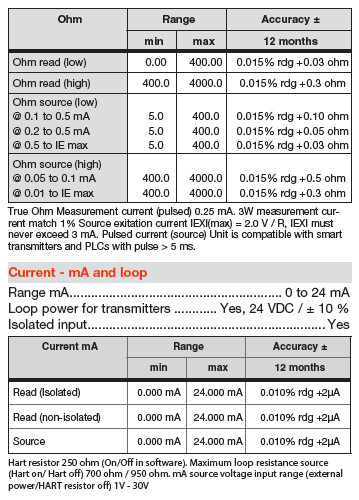

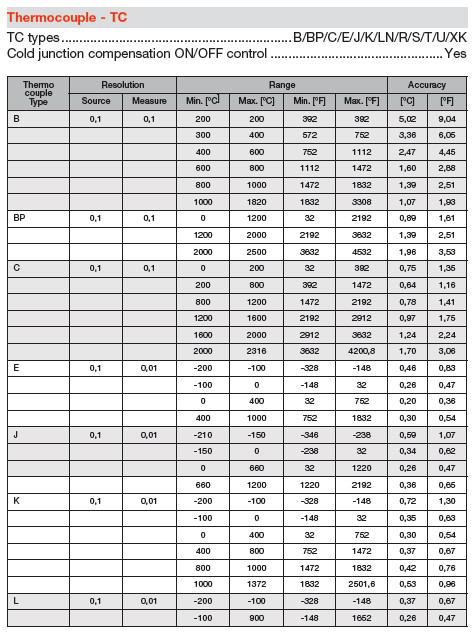

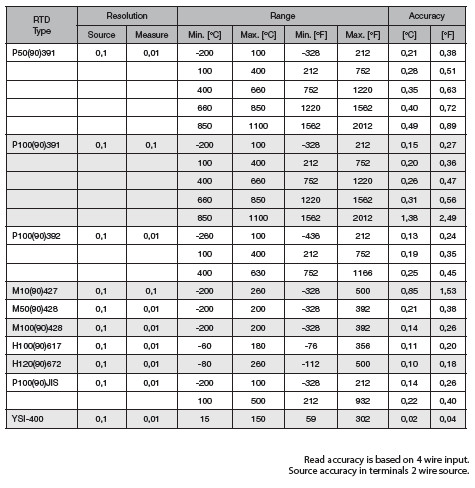

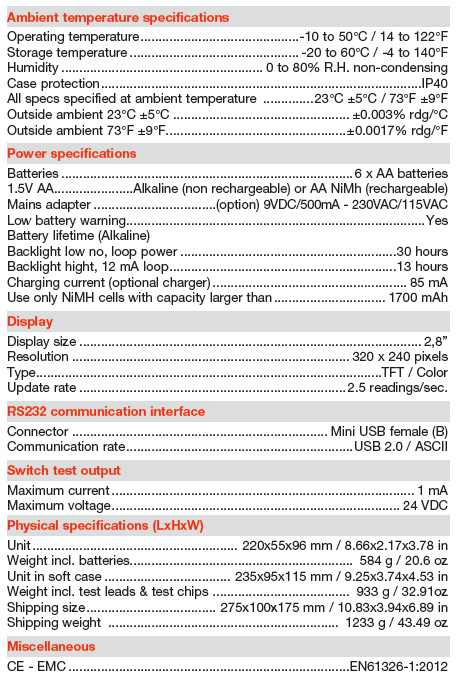

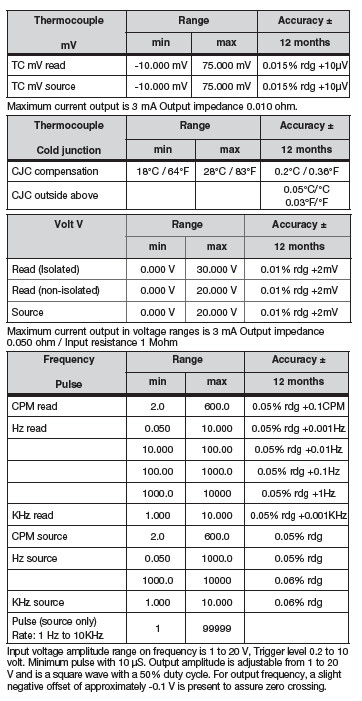

Technical Specifications

Ametek ASC-400 Data Sheet
