West Pro-4 Single Loop Controller
|
Item Number: KS9211
Manufacturer: West
Part Number: KS9211

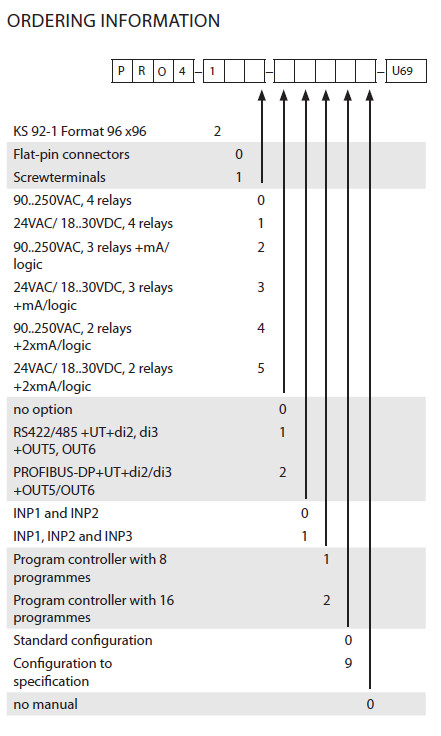

Product Options
* denotes required field
Voltage/Outputs Options*
You must select an option for 'Voltage/Outputs Options'.
Options*
You must select an option for 'Options'.
Inputs*
You must select an option for 'Inputs'.
Profiler*
You must select an option for 'Profiler'.
Configuration*
You must select an option for 'Configuration'.
* Whole number only
|
|

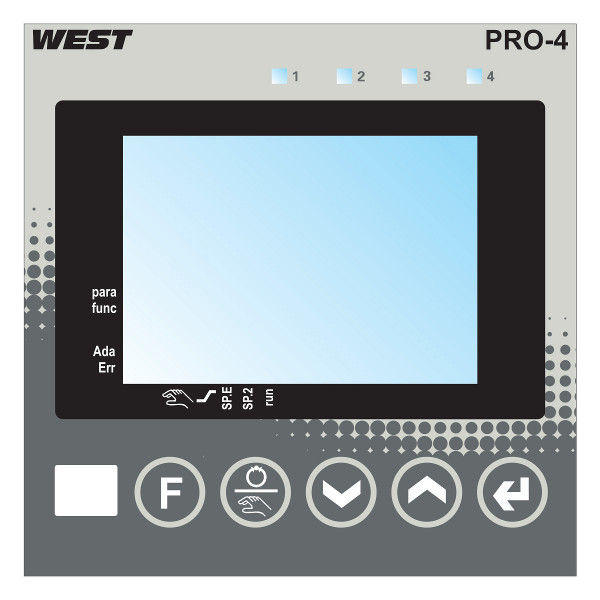

West Pro-4 Single Loop Controller
A fully featured controller for demanding applications. Meeting challenging application requirements through a high level of I/O, advanced control capability and offering the best-in-class configuration software, BlueControl©.The Pro-4 offers many integrated features for unrivalled performance such as two PID sets to ensure reliable control over a wide setpoint range and separate PID for heat and cool strategies for optimized control and stability. Extensive flexibility is offered with 2 universal inputs and 1 optional, up to 3 digital inputs, 6 outputs and an inbuilt profiler with 16 segments x 16 profiles.
Features
- Up to 16 programs with 16 segments each
- 4 control (event) tracks
- Plain text program names
- BluePort® Front interface and BlueControl software
- Maintenance manager and error list
- Two universal inputs
- Day & Night display shows plain text and bargraphs
- Manual gain scheduling
- Self-Tuning to the setpoint without oscillation
Applications
- chamber ovens
- melting and pot furnaces
- climatic and test chambers
- driers
- heat treatment
- test beds
- textile treatment (dyeing)
- glass industry (tempering)

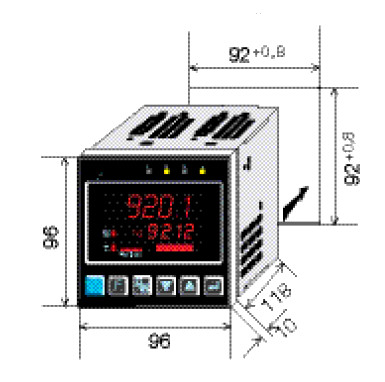

Dimensions
Technical Specifications
| Product Category: |
Single Loop Controller |
| Dimensions and size: |
96m x 96mm x 118mm (HxWxD), 1/4 DIN |
| Connectors: |
Pin or screw terminals |
| Primary Input Type: |
Universal (TC, RTD, DC linear mA/mV) |
| Other Inputs: |
External setpoint, Heating or remote setpoint current monitoring |
| Output Type: |
Relay, Logic, SSR, DC Linear |
| Max. Number of Outputs: |
6 |
| Scan Time: |
100 ms |
| Control Type: |
2-point (on/off), continuous PID control, or 3-point stepping |
| Number of Programmer Segments: |
16 x 16 |
| Power Supply: |
90-260 VAC, 20,4-26,4 VAC: Frequency 48-62 Hz,
18-31 V DC |
| Communications: |
Modbus RS422/485, Profibus DP, RTU Interface |
| Panel Sealing: |
IP65 |
| Certifications: |
CE, cULus, DIN EN 14597, GOST-R |
| Software Tools: |
BlueControl |
|
