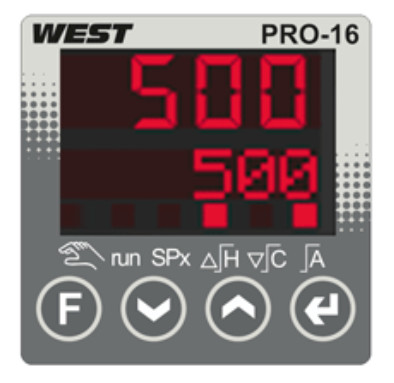

West Pro-16 Single Loop Controller
A compact, fully featured controller for demanding applications. Pro-16 is the only controller of its size, flexible with up to 6 outputs, 2 digital inputs, a remote setpoint input, RS485 communications and linked to best in class Blue Control software. The Pro-16 offers many integrated features for unrivalled performance such as two PID sets to ensure reliable control over a wide setpoint range and separate PID for heat and cool strategies for optimized control and stability. Extensive flexibility is offered with 1 universal inputs and 1 optional, up to 3 digital inputs, 6 outputs and an inbuilt profiler with 16 segments x 16 profiles. A highly visible display is offered with 1 line of 7 segment LED display and 1 line of text display.
Features
- Up to 16 segments x 16 profiles
- 4 control (event) tracks
- Plain text program names
- BluePort® Front interface and BlueControl software
- Maintenance manager and error list
- One universal input and one optional input
- Up to 4 digital inputs
- Manual gain scheduling
- Self-Tuning to the setpoint without oscillation
Applications
- Furnaces and ovens
- Burners and boilers
- Plastics processing
- Driers
- Climatic chambers
- Heat treatment plants
Technical Specifications
| Product Category: |
Single Loop Controller |
| Dimensions and size: |
48m x 48mm x 118mm (HxWxD), 1/8 DIN |
| Connectors: |
Pin or screw terminals |
| Primary Input Type: |
Universal (TC, RTD, DC linear mA/mV) |
| Other Inputs: |
External setpoint, Heating or remote setpoint current monitoring |
| Output Type: |
Relay, Logic, SSR, DC Linear |
| Max. Number of Outputs: |
6 |
| Scan Time: |
100 ms |
| Control Type: |
2-point (on/off), continuous PID control, or 3-point stepping |
| Number of Programmer Segments: |
16 segments x 16 profiles |
| Power Supply: |
90-260 VAC, 20,4-26,4 VAC: Frequency 48-62 Hz,
18-31 V DC |
| Communications: |
RS 485 |
| Panel Sealing: |
IP65 |
| Certifications: |
CE, cULus, DIN EN 14597, GOST-R |
| Software Tools: |
BlueControl |
|
