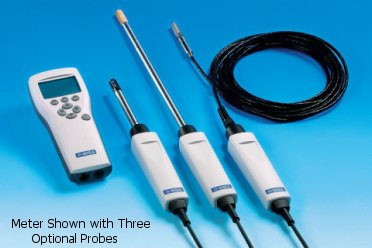

Vaisala HM70 HUMICAP® Hand-Held Humidity and Temperature Meter
MI70 indicator + probe = HM70
The Vaisala HUMICAP® Hand-Held Humidity and Temperature Meter HM70 is a user-friendly meter for demanding spot-checking humidity measurements. It is ideal for field checking and calibration of Vaisala's fixed humidity instruments.
Features:
- RH measurement range 0…100 % RH
- Multilingual user interface
- Shows measurement trends graphically
- Proven Vaisala HUMICAP® Sensor technology
- 3 probes, temperature measurement ranges between -70 and +180 C
- Multiprobe operation; dewpoint and CO2 probes can also be connected
- Displays various humidity parameters
- Sensor preheat and chemical purge options for demanding conditions
- Data can be logged, and transferred to a PC via MI70 Link software
- Rugged and reliable - even in extreme conditions
- NIST traceable (certificate included)

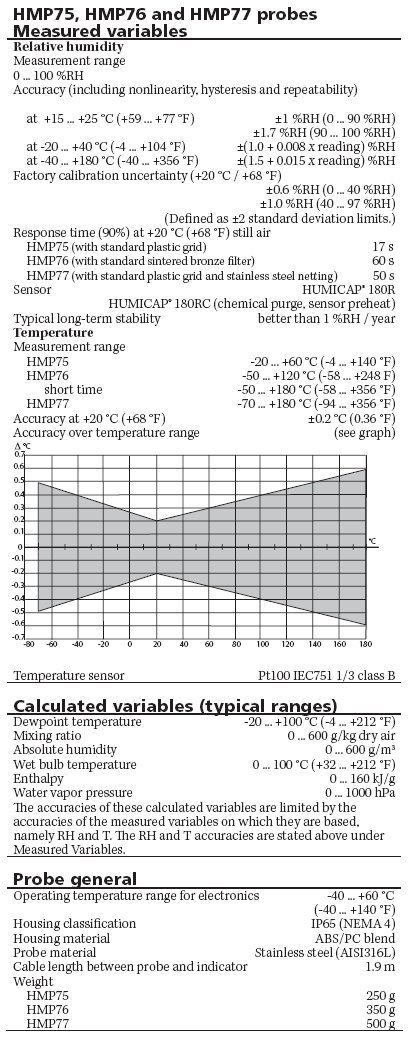

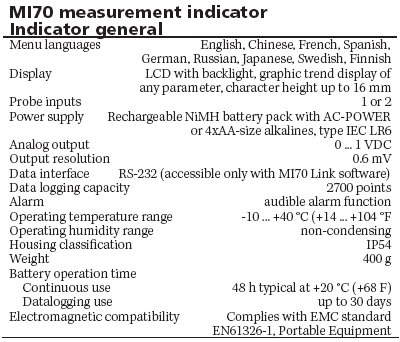

MI70 Specifications:
|
Relative Humidity Measurement |
| Measurement Range |
0 ... 100 % RH |
| Accuracy at +20 C (68 F) |
+/- 1.0 % RH (0 ... 90% RH)
+/- 1.7 % RH (90 ... 100% RH |
| Sensor |
Vaisala HUMICAP® 180R |
|
Temperature Measurement |
|
Measurement range: |
| HMP75 |
-20 ... +60 C (-4 … +140 F) |
| HMP76 |
-50 ... +120 C (-58 … +248 F) |
| Short Time |
-50 ... +180 C (-58 … +356 F) |
| HMP77 |
-70 ... +180 C (-94 … +356 F) |
| Accuracy at +20 C (+68 F) |
+/- 0.2 C (0.36 F) |
| Sensor |
Pt100 1EC751 1/3 class B |
|
Operating Environment |
Temperature (MI70
measurement indicator) |
-10 ... +40 C (+14 ... +104 F) |
| Humidity |
Non-condensing |
|
Input and Outputs |
| Power Consumption |
Rechargeable NiMH battery pack with AC power or 4 x AA alkaline batteries, type IEC LR6 |
| Analog output |
0 ... 1 VDC |
| Menu languages |
English, French, Spanish, German, Swedish, Finnish, Russian, Japanese, Chinese |
|
Mechanical |
| Weight |
400 g |
| Housing Classification |
IP54 |
Call (732) 632-6400 for More Options & Accessories |
