Vaisala TMD82 Duct-Mount Temperature Transmitter
|
Item Number: TMD82
Manufacturer: Vaisala
Part Number: TMD82
Product Options
TMD82 Calibration Options
* Whole number only
|
|

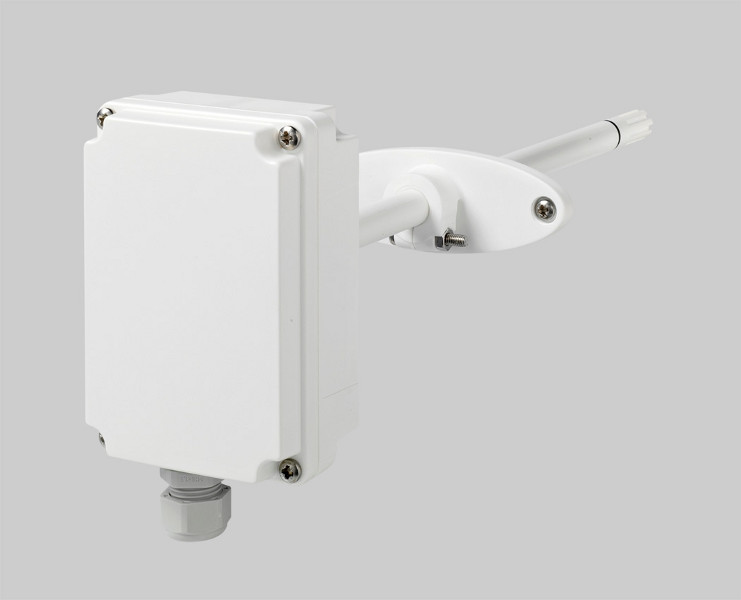

Vaisala TMD82 Duct-Mount Temperature Transmitter
The 2-wire TMD82 transmitter measures temperature in ventilation ducts. The transmitter combines easy installation and reliable operation with low requirement for maintenance. The TMD82 transmitter is optimized for easy installation. It contains no separate small parts that can get lost. All connectors are clearly labeled and the connectors are within easy reach. The transmitter is well suited to variable duct sizes. The excellent stability of the sensors and high quality materials ensure that the TMD82 transmitter requires minimal maintenance.
The Analog output is preset at the factory to 4...20 mA = -40 ... +60 °C (-40 ... +140 °F) T
Features
- Wall-mount temperature-only transmitters TMW82/83
- Standard wall-mount humidity and temperature transmitters HMW82/83
- IP65-classified wall-mount humidity and temperature transmitters HMW88/89(D) with and without display, for humid areas
- Duct-mount humidity and temperature transmitters HMD82/83(D) with and without display

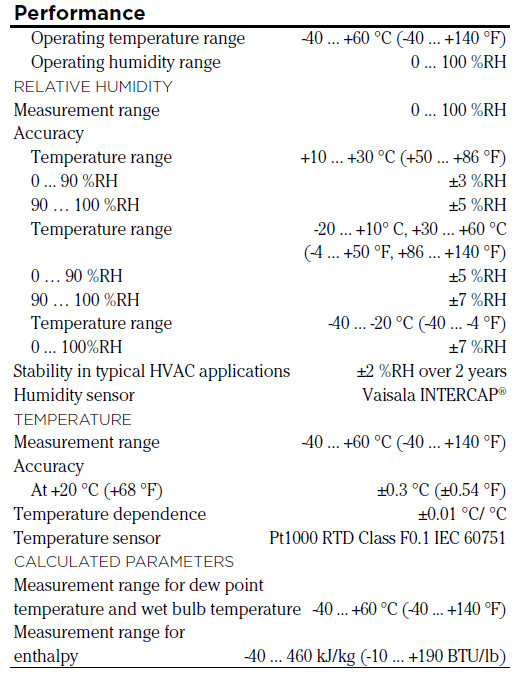

Technical Specifications
|
Vaisala TMW83 transmitter is designed for use in energy management systems in buildings. TMW83 has a 0-10V output.
|
Vaisala TMW82 transmitter is designed for use in energy management systems in buildings. TMW82 has a 4-20mA loop-powered output.
|
Vaisala HMW83 transmitter is designed for use in energy management systems in buildings. It combines excellent stability with reliable operation. HMW83 has two 0-10 V outputs corresponding to 0-100% RH and -5…+55°C (+23…+131 °F) temperature.
|
Vaisala HMW82 transmitter is designed for use in energy management systems in buildings. HMW82 has two 4-20 mA loop-powered outputs corresponding to 0-100% RH and -5…+55 °C (+23…+131 °F) temperature.
|
Vaisala TMD83 transmitter measures temperature in ventilation ducts. The transmitter combines easy installation and reliable operation with low requirement for maintenance. The TMD83 transmitter is optimized for easy installation. TMD83 has a 0-10V output
|
Vaisala HMW89 transmitter measures relative humidity and temperature in wash-down areas and other humid environments within building automation. The HMW89 transmitter is optimized for easy installation. HMW89 has a 0-10V output.
|
Vaisala HMW88 transmitter measures relative humidity and temperature in wash-down areas and other humid environments within building automation. The HMW88 transmitter is optimized for easy installation. HMW88 has a 4-20mA output.
|
Vaisala HMD83 transmitter measures relative humidity and temperature in ventilation ducts. The transmitter combines easy installation and reliable operation with low requirement for maintenance. The HMD83 has a 0-10V DC output.
|
Vaisala HMD82 transmitter measures relative humidity and temperature in ventilation ducts. The transmitter combines easy installation and reliable operation with low requirement for maintenance. The HMD82 has a 4-20mA output.
|
Vaisala HMS83 is a 3-wire transmitter that measures relative humidity and temperature in outdoor environments. HMS83 has a 0-10 V output.
|
Vaisala HMS82 is a 2-wire transmitter that measures relative humidity and temperature in outdoor environments. HMS82 has a 4-20 mA output.
| |
