Vaisala HUMICAP® HM40S Humidity and Temperature Meter with Cable Probe
|
Item Number: HM40S
Manufacturer: Vaisala
Part Number: HM40S
Product Options
Vaisal HM40S Calibration Option
* Whole number only
|
|

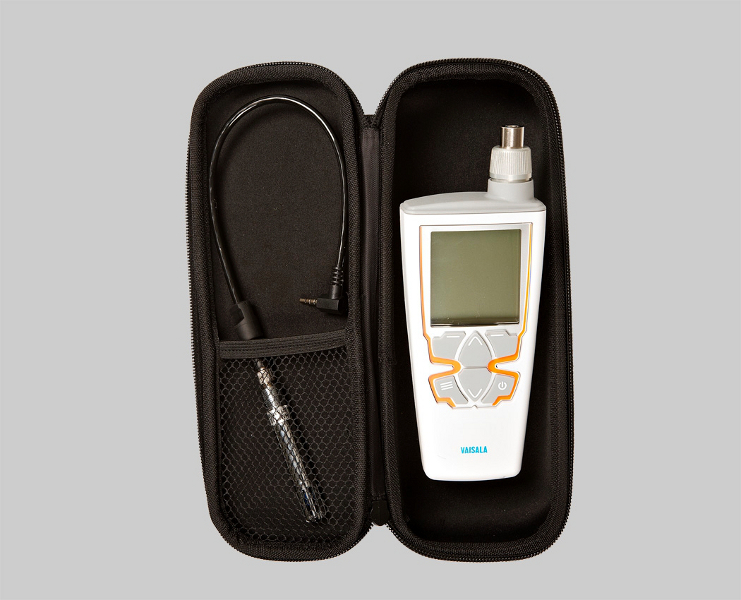

Vaisala HUMICAP® HM40S Humidity and Temperature Meter with Cable Probe
HM40S offers an easy and reliable solution for humidity and temperature measurements where cable probe is required. Ideal for concrete moisture measurements using the borehole method. The interchangeable HMP40S probe connects easily to the HM40 indicator with a snap-on connector enabling convenient use of multiple probes with one indicator. The measurement data can be displayed in numeric, graphic or statistic views. The rugged HMP40S probe is IP65 classified.
Includes
- HM40 indicator with a quick connection adapter
- HMP40S RH&T probe with a cable
- Calibration certificate (ISO9001 compliant, NIST traceable)
- Light carrying case
- Alkaline batteries 2 x AA sized, 1.5V (LR6)
- Quick User's Guide in multiple languages
Features
- Easy to use
- Truly interchangeable measurement probes
- Durable
- Accurate measurement data in numeric, statistic or graph views
- Conforms to ASTM standard F2170
- IP65 classified measurement probe and case

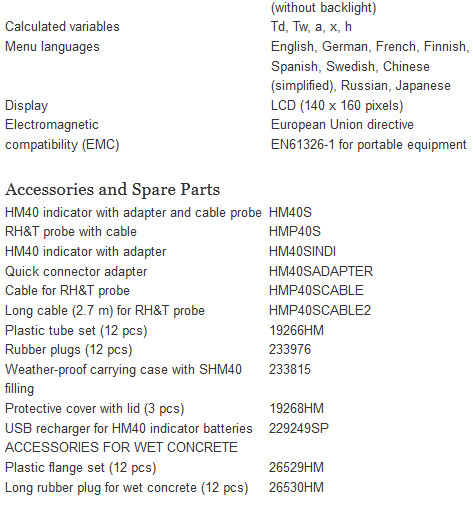

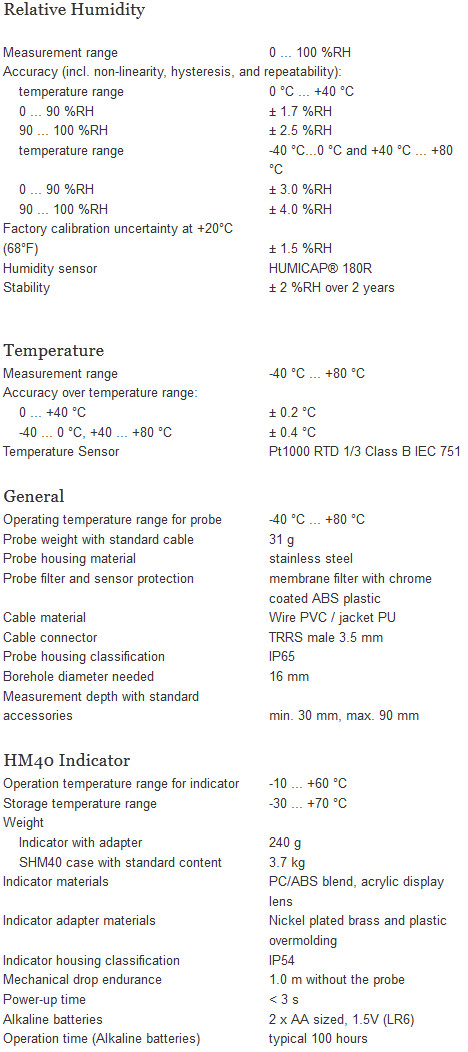

Technical Specifications
| Measurement parameter(s) |
Relative humidity
Temperature
Absolute humidity*
Dew point temperature*
Enthalpy*
Mixing ratio*
Wet bulb* |
| Measurement range |
0 ... 100 % RH
-40 ... +80 °C (-40 ... +176 °F) T |
| Measurement accuracy |
At temperature +0 ... 40 °C (+32 ... +104 °F):
±1.7 % RH (0 ... 90 % RH)
±2.5 % RH (90 ... 100 % RH)
±0.2 °C T |
| Operating temperature |
Probe: -40 ... +80 °C (-40 ... +176 °F) T
Indicator: -10 ... +60 °C (+14 ... +140 °F) T |
| Operating voltage |
2xAA-size alkaline batteries, type IEC LR6 |
| Housing classification |
IP65 for probe
IP54 for HM40 indicator |
|
Vaisala SHM40 offers an easy and reliable solution for humidity measurements in concrete and other structures using the borehole method.
| |
