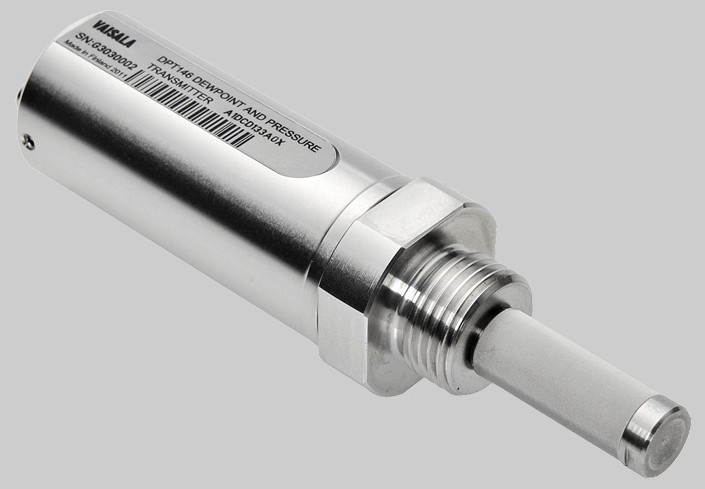

Vaisala DPT146 Dewpoint and Pressure Transmitter for Compressed Air
|
Item Number: DPT146
Configuration: DPT146-A-1-A-A-A-1-0-0-A-0-X
Manufacturer: Vaisala
Part Number: DPT146
Product Options
* denotes required field
DPT146 Mechanical Connection Selection*
You must select an option for 'DPT146 Mechanical Connection Selection'.
DPT146 Measurement Parameter Options*
You must select an option for 'DPT146 Measurement Parameter Options'.
DPT146 Analog Output Ch1 & Ch2 Selection*
You must select an option for 'DPT146 Analog Output Ch1 & Ch2 Selection'.
DPT146 Analog Output Parameter or Function for Ch1 Selection*
You must select an option for 'DPT146 Analog Output Parameter or Function for Ch1 Selection'.
DOT146 Analog Output Parameter or Function for Ch2*
You must select an option for 'DOT146 Analog Output Parameter or Function for Ch2'.
DPT146 Output Unit Options*
You must select an option for 'DPT146 Output Unit Options'.
DPT146 Cable for Analog Outputs and Power Supply (Port I) Selection*
You must select an option for 'DPT146 Cable for Analog Outputs and Power Supply (Port I) Selection'.
DPT146 Cable for Analog Outputs and Power Supply (Port II) Selection*
You must select an option for 'DPT146 Cable for Analog Outputs and Power Supply (Port II) Selection'.
DPT146 Installation Accessories ONLY for ISO1/2" Thread Selection*
You must select an option for 'DPT146 Installation Accessories ONLY for ISO1/2" Thread Selection'.
* Whole number only
|
|
Vaisala DPT146 Dewpoint and Pressure Transmitter for Compressed Air
The Vaisala Dewpoint and Pressure Transmitter DPT146 for Compressed Air makes monitoring compressed air simple and convenient. The DPT146 measures both dew point and process pressure simultaneously, and is ideal choice for anyone using or monitoring compressed air.
Features
- The first transmitter that monitors both dew point and process pressure
- A simple and convenient transmitter for monitoring of compressed air
- Highly accurate humidity information thanks to dew point data coupled with live pressure input
- Proven sensor technology
- Compatible with the Vaisala Hand-Held DM70 for easy spot checking, local display and data logging
- Pressure: 1…10 bar
- Dew point: -60 ... +30 °C (-76 ... +86 °F) Tdf with accuracy of ±2 °C (±3.6 °F)

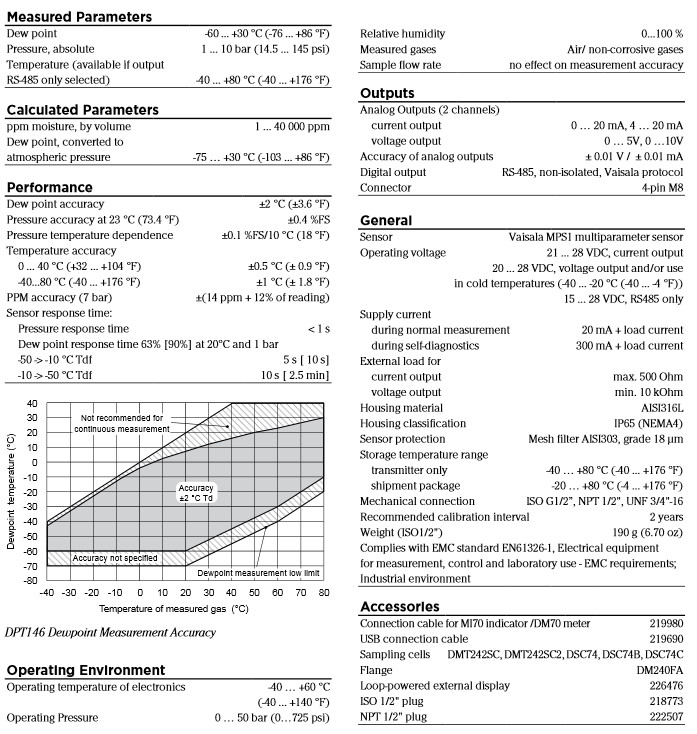

Technical Specifications
|
