UEI IRT20 Insulation Resistance Tester
|
Item Number: IRT20
Manufacturer: UEI
Part Number: IRT20
* Whole number only
|
|

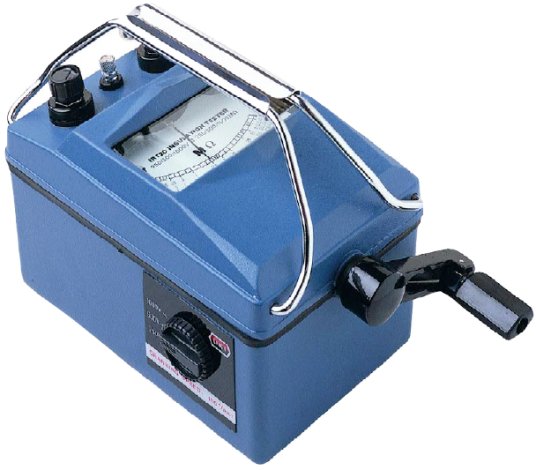

UEI IRT20 Insulation Resistance Tester
The UEI IRT20 is an affordable, rugged, hand-cranked Megohmeter that is ready to go when you are. It's heavy-duty construction and multiple output ranges make it suitable for a wide variety of applications, even in harsh environments.
IRT20 Features:
-
1000, 500 and 250 Volt output ranges
-
Sealed, water resistant rugged metal housing
-
Damping time exceeds 4 seconds
-
Hand-crank power supply
-
Accurate to within one division
-
One year limited warranty
IRT20 Specifications:
| Voltage |
Range |
Scale Drive |
| 250V |
.01 - 250 MOhms |
.05 M |
| 500V |
.01 - 500 MOhms |
.1 M |
| 1000V |
.01 - 1000 MOhms |
.2 M |
|
Accuracy at 77°F
(20°C)
|
±1% of full scale |
-
|
|
Insulation Resistance at
77°F (20°C)
|
Not less than 20 M |
-
|
| Damping Time |
Better than 4 seconds |
-
|
| Dimensions |
215 mm x 120 mm x 150mm |
-
|
|
