Triplett Model 2003 2013 Railroad Tester
|
Item Number: 2013
Manufacturer: Triplett - Jewell Instruments
Part Number: 2013
Product Options
Triplett Model 2003 – 2013 Calibration Options
* Whole number only
|
|

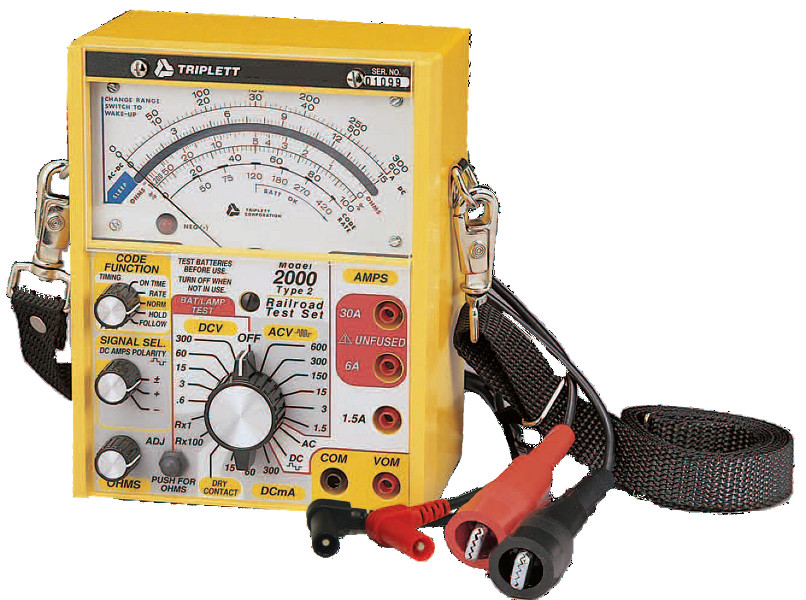

Triplett Model 2003 – 2013 Railroad Tester
The Model 2003 includes all of the features of the Model 2000 with the addition of Cab Filters. The Model 2003 was designed for railroads using 60Hz and 100Hz coding systems.
Features
- 60Hz and 100Hz Cab Filters
- All pass position – bypass Cab Filters
- Auto Polarity in DC functions
- Selectable DC Amp polarity
- Direct measurement of Code Parameters
- Relay Contact On Time (Dry Contact) requires no adjustment
- Ohmmeter Voltage Mode detects either polarity voltage including AC
- Field replaceable protective window

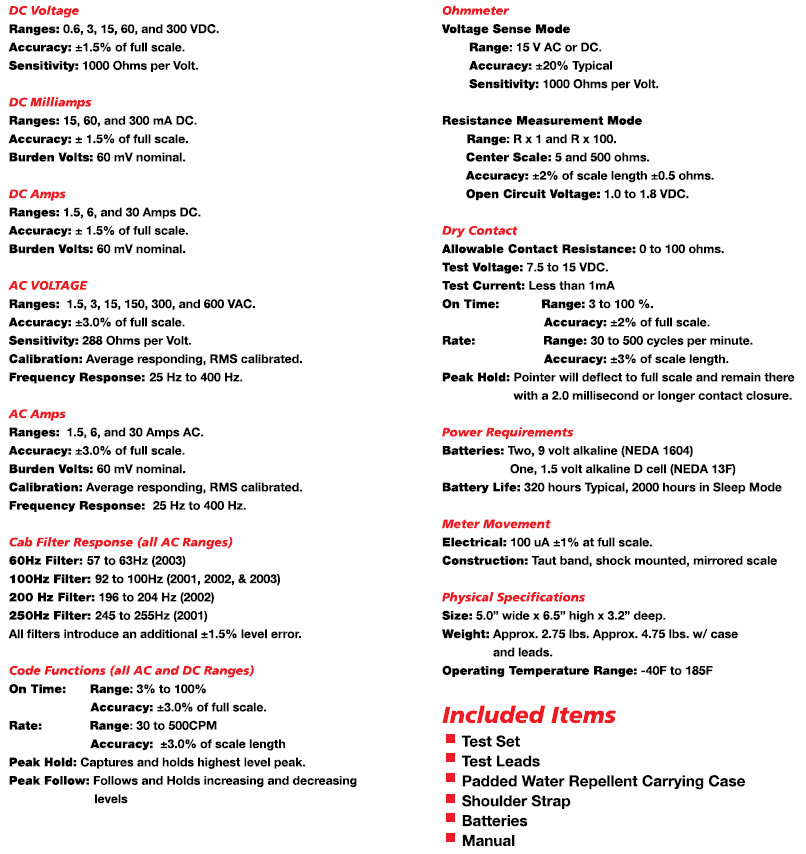

Technical Specifications
|
Triplett Model 2000 is the perfect test set when no Cab Filters are needed.
|
Triplett Model 2002 – 2012 Railroad Test Set with 100/200Hz Cab Filters.
|
Triplett Model 2001 – 2011 Railroad Test Set with 100/250Hz Cab Filters.
| |
