Time Electronics 1065 Resistance Power Decade Box
|
Item Number: 1065
Manufacturer: Time Electronics
Part Number: 1065
Product Options
Calibration Certification Options
* Whole number only
|
|

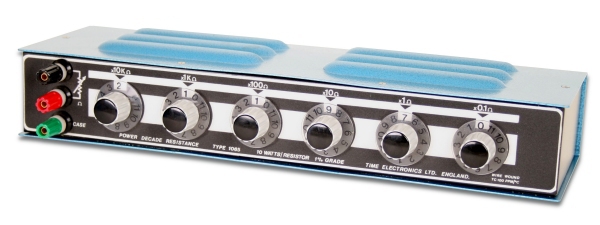

Time Electronics Model 1065 Power Decade Box
Features:
- 1% accuracy
- 10 Watt disapation
- In-line readout
- Sources 0.1 to 120 K-Ohms
- Robust design
- Fully screened
The Time Electronics 1065 Power Decade Resistance Box is designed to meet the standard for educational, industrial and research & design applications. Housed in a well ventilated metal case its compact construction makes it easily transportable, and when in use it takes up a minimum of bench space.

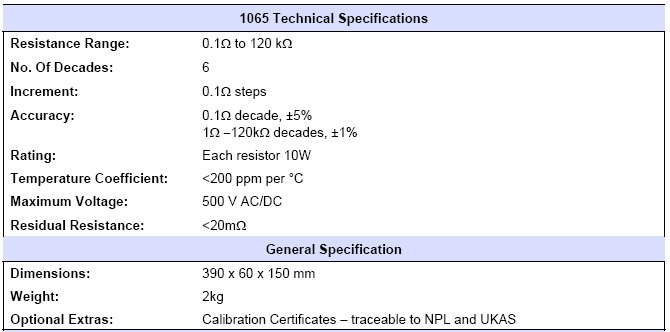

Resistance ranges from 0.1 Ohm to 120k Ohms with a 1% accuracy. Each resistor has a power rating of 10W and the maximum working voltage is 500V. Switch contact resistance has been kept to a minimum by the use of multi-wafer switches, each with four parallel, silver-plated, self-wiping contacts. The six in-line dials give a clear numerical readout of the selected resistance.
|
