Time Electronics 1053 Inductance Decade Box
|
Item Number: 1053
Manufacturer: Time Electronics
Part Number: 1053
* Whole number only
|
|

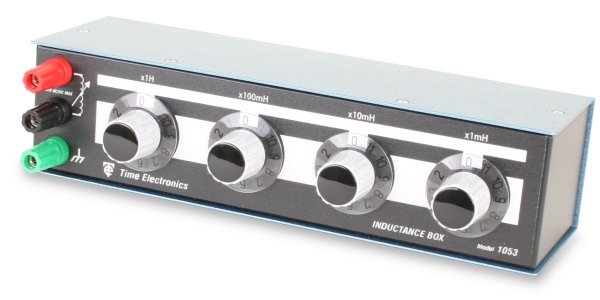

Time Electronics Model 1053 Inductance Decade Box
Features:
- 1 mH to 10 H Range
- 3% Accuracy
- High stability, fully screened
- Compact construction
- Compact and robust for field service work
- Safety Terminals
The Time Electronics Model 1053 is a compact, robust and accurate decade inductance box suitable for filter design, experimental, general purpose substitution, and DC to DC converter design. Inductance is set by four easy-to-read dials that are divided into 4 decades, and provide 1mH, 10mH, 100mH, and 1H steps. The maximum setting is 11.11H. Its custom wound, high permeability ferrite cores ensure insignificant influence from external magnetic fields and maximum stability. The 1053 is housed in a fully screened robust metal case. The front panel safety terminals are compatible with4mm shrouded plugs, as well as standard plugs, bare wires, and spade terminals.
|
