Time Electronics 1051 Precision Resistance Decade Box - RTD Simulator Substitutor
|
Item Number: 1051
Manufacturer: Time Electronics
Part Number: 1051
Product Options
Calibration Certification Options
* Whole number only
|
|

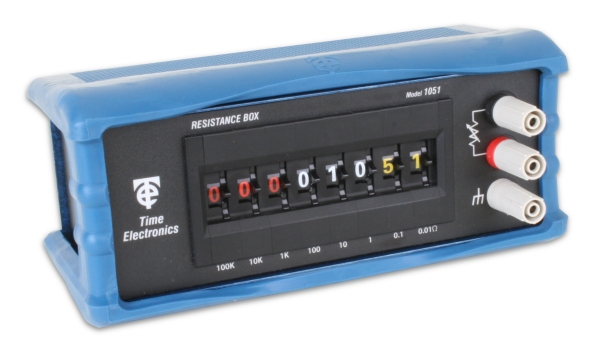

Time Electronics Model 1051 Decade Box - RTD Simulator Substitution Box
Features:
- High accuracy and precision
- 10 mill-ohm Resolution, 1 M-Ohm Range
- High stability and low temperature coefficient
- Ideal for Platinium Resistance Thermometer Simulation
- Compact and robust for field service work
- Safety Terminals
- Removable protective rubber boot, ideal for dield use
- Color coded decade digits are easy to read and select
The Time Electronics 1051 is a wide range low ohm resistance box designed for general laboratory work including platinum resistance thermometry.
Switch Contacts: Special attention has been given to the reliability of operation. A special multiple gold contact arrangement ensures low contact resistance and continued operation even if a contact fails.
Safety Terminals: Fully compatible with 4mm shrouded plugs, as well as standard plugs, bare wires, and spade terminals.
Clear Visual Indication: To enhance reading the setting, the 1051 has colour coded digits; Kohms (red), ohms (white), and 0.1 ohms (yellow).
Added Protection: The 1051 comes fitted with an ergonomic rubber boot providing increased protection and durability. The boot has a textured grip for comfortable handling and a raised edge so the 1051 angles slightly upward when resting horizontally.
|
