Thermocouple Pipe Temperature Probe
|
Item Number: TC-
Configuration: -G-72
Manufacturer: Newport Electronics
Part Number: TC-
Product Options
* denotes required field
Thermocouple Type Selection*
Thermocouple Junction Type Selection*
Pipe Probe Sensor Termination Selection*
NIST Calibration - Thermocouple Sensor*
* Whole number only
|
|
|

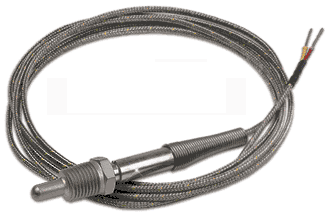

Thermocouple Pipe Plug Probe This high pressure thermocouple plug sensor is ideal for vessel or pipe applications, pressurized containers and applications requiring mounted NPT security for fixed readings. Its 304SS sheath has a 6.4 mm (0.25") dia. probe that extends 1/2"** from a 1/4" NPT pipe plug, with 1.8 m (6') of 20 AWG fiberglass insulated stranded thermocouple grade wire with stainless steel over-braiding and either stripped leads or a miniature male connector option.
For grounded or ungrounded junctions, pressure rating is 2500 PSI. The hex flats are 0.560" on the flats; 16.1 mm (0.635") between points. Hex flats width is 5.8 mm (0.23"). Maximum temp rating: Types J, K, E: 480 Deg C (900 Deg F); Type T: 370 Deg C (700 Deg F).
** Custom version of this sensor available call with your specific needs.
|
