Texmate SB-B31 Loop Powered Bar Graph Meter
The Texmate SB-B31 is a compact loop powered bargraph meter for easily displaying 4-20mA loop signals. It can be supplied in a horizontal or vertical stacking arrangement.
Features:
- Simple 4 to 20mA loop powered bargraph
- Low loop drop of only 4V
- Needs no external power supply
- Bright red LED display
- Easy to calibrate with ZERO and SPAN potentiometers
- Customized faceplates available

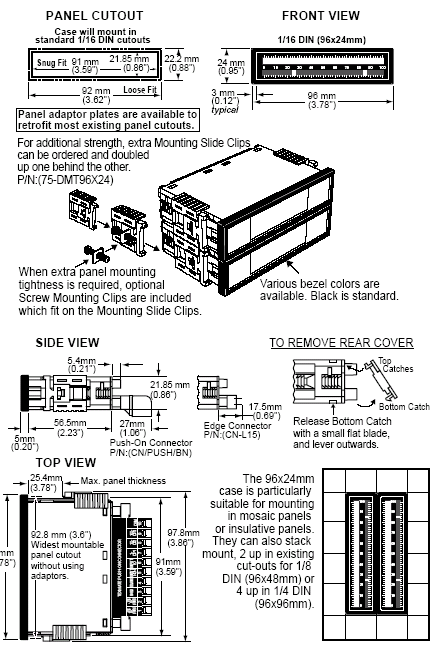

- Compact short depth 96 X 24mm case
- Can be stacked for multiple meter mounting

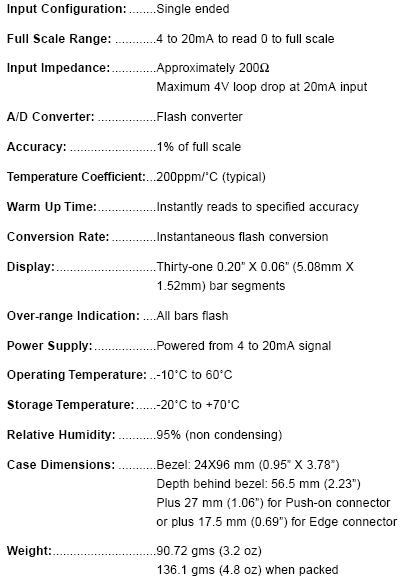

Specifications:
|
