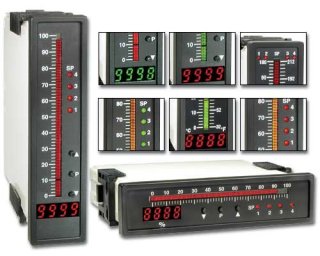

Texmate FL-B101D40F Leopard Bargraph Frequency Meter

Texmate, an international leader in Bargraphs and digital panel instruments for more than 20 years, introduces a new addition to the Leopard Family of meters. The FL-B101D40F bargraph is the optimal choice to replace switchboard, analog meters, or setpoint-controllers. Texmate's state-of-the-art, user friendly technology, has produced a cost effective bargraph that is easy to program and calibrate, with more than 30 compatible modular signal conditioners that can be configured for almost any application.

Features:

• Frequency input. Easily user scaled.
• Optional isolated 16 bit analog output. User or factory scalable to 4 to 20 mA, 0 to 20 mA or 0 to 10 V across any desired digital span from +/- one count to the full scale range of - 1999 to 9999 (12000 counts).
• A Programmable Tricolor (Red-Green-Orange) or mono color (red or green), 101 segment high brightness bargraph. Vertical or optional horizontal format.
• Red 4-digit LED display with a range of -1999 to 9999 (12000 counts). Optional green digital display.
• Front panel LED annunciators provide indication of setpoint status.
• Two 10 Amp Form C, and two 5 Amp Form A relays available
• Auto-sensing AC/DC power supply. For voltages between 85-265 V AC / 95-370 V DC (PS1) or 18-48 V AC / 10-72 V DC (PS2).
• 24 V DC excitation is available to power external 4/20mA transmitters and 5 or 10 V DC excitation is available for resistance bridge type sensors.
• Provision to connect an external programming lockout switch.
• Provision for external DIM switch to reduce the brightest display setting by 50%.
• Optional NEMA-4 front cover.
• Automatic intelligent averaging, smooths noisy signals while providing a fast display response to real level changes.

Software Features:

• The bargraph can display, full scale, any desired portion of the digital reading.
• Bargraph center zero function.
• Four programmable setpoints.
• Setpoint 1 has delay-onmake and delay-on-break plus a special “pump on pump off” mode that creates a Hysteresis Band between SP1 and SP2.
• Relay activation can be selected to occur above (hi) or below (Lo) each setpoint.
• Digital display blanking.
• Decimal point setting.
• Four-level brightness control of the bargraph and digital display.

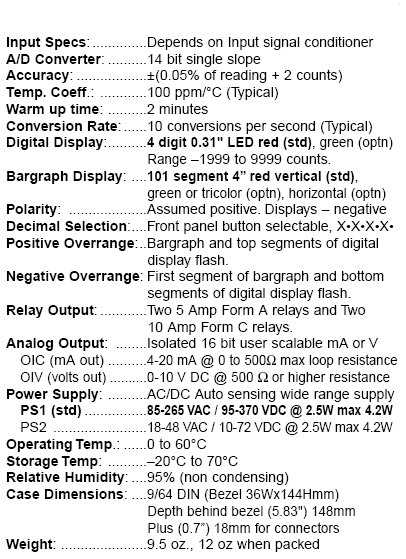

Specifications:
