Texmate DL-40H Leopard Temperature Meter
|
Item Number: DL-40H
Manufacturer: Texmate
Part Number: DL-40H
Product Options
* denotes required field
Texmate DPM Display Options*
You must select an option for 'Texmate DPM Display Options'.
Texmate Temperature Input Selection*
You must select an option for 'Texmate Temperature Input Selection'.
Texmate DPM Analog Output*
You must select an option for 'Texmate DPM Analog Output'.
Texmate DPM Relay Output*
You must select an option for 'Texmate DPM Relay Output'.
NIST Calibration - Digital Panel Meter*
You must select an option for 'NIST Calibration - Digital Panel Meter'.
* Whole number only
|
|
Texmate DL-40H Leopard Temperature Meter
Features:
- Thermocouple (J, K, R and T types) or RTD (Pt-100. 385 and 392 curves. 3 wire/4wire). Digitally Linearized.
- Optional isolated 16 bit analog output. User or factory scalable to 4 to 20 mA, 0 to 20 mA or 0 to 10 V across any desired digital span from +/- one count to the full scale range of - 1999 to 9999 (12000 counts).
- Auto-sensing AC/DC power supply. For voltages between 85-265 V AC / 95-370 V DC (PS1) or 15-48 V AC / 10-72 V DC (PS2).
- Standard red or optional green or super bright red 4-digit LED
- Red or green 0.8” LED large display option.
- Four annunciator LEDs provide front panel alarm status indication for up to four setpoints.
- Two 10 Amp Form C and two 5 Amp Form A relay, or optionally four 5 Amp Form A relays are available.
Software Features:
- Three-button programming from the front panel (UP, DOWN and PROGRAM buttons).
- Three front panel selectable ranges.
- Front panel selectable four-level brightness control of digital display, and setpoint LEDs.
- Four programmable setpoints.
- Relay activation can be selected to occur above (HI) or below (LO) each setpoint.
- Hysteresis setting for all four setpoints. Delay on make and delay on break for SP1 and SP2.
- Peak and Valley. View and Reset.

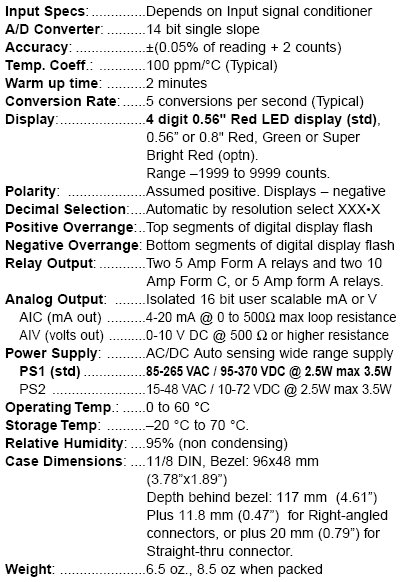

Specifications:
Case Dimensions:
 |
