Texmate DL-40F Leopard Frequency Meter

Our Price: $110.00

Item Number: DL-40F

Manufacturer: Texmate

Part Number: DL-40F

* denotes required field

Texmate DPM Display Options*

Texmate DPM Power Supply Options*

Texmate Frequency Input Selection*

Texmate DPM Analog Output*

Texmate DPM Relay Output*

NIST Calibration - Digital Panel Meter*

Quantity:

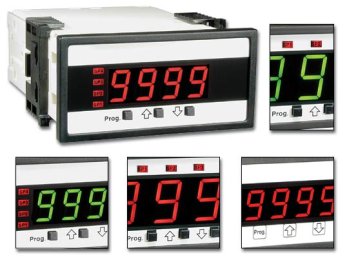

Texmate DL-40F Leopard Frequency Meter

Features:

Frequency input. Easily user scaled.
For RPM measurements, the recommended meter is the DL-40RPM meter which has been designed specifically for that purpose. Just enter the pulses per revolution and the DL- 40RPM meter will calculate and display the RPM reading.
Three frequency ranges of 99.99Hz, 999.9Hz and 9999Hz.
Optional isolated 16 bit analog output. User or factory scalable to 4 to 20 mA, 0 to 20 mA or 0 to 10 V across any desired digital span from +/- one count to the full scale range of - 1999 to 9999 (12000 counts).
Auto-sensing AC/DC power supply. For voltages between 85-265 V AC / 95-370 V DC (PS1) or 15-48 V AC / 10-72 V DC (PS2).
Standard red or optional green or super bright red 4-digit LED
Red or green 0.8” LED large display option.
Four annunciator LEDs provide front panel alarm status indication for up to four setpoints.
Optional relays. Two 10 Amp Form C and two 5 Amp Form A relay, or optionally four 5 Amp Form A relays are available.

Software Features:

Three-button programming from the front panel (UP, DOWN and PROGRAM buttons).
Three front panel selectable ranges.
Front panel selectable four-level brightness control of digital display, and setpoint LEDs.
Four programmable setpoints.
Relay activation can be selected to occur above (HI) or below (LO) each setpoint.
Hysteresis setting for all four setpoints. Delay on make and delay on break for SP1 and SP2.
Peak and Valley. View and Reset.

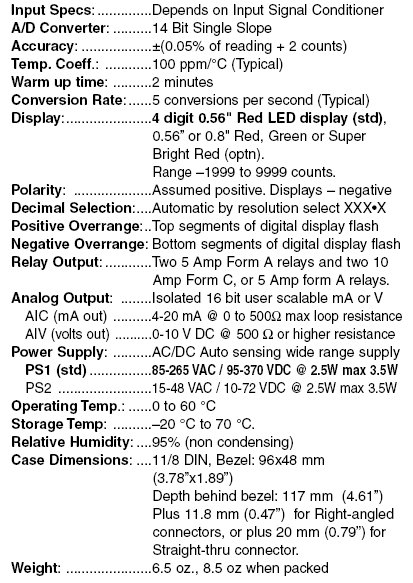

Specifications:

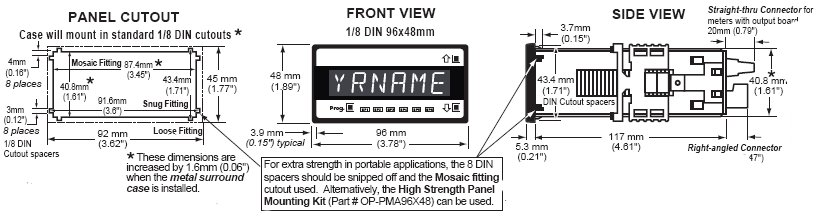

Case Dimensions:
