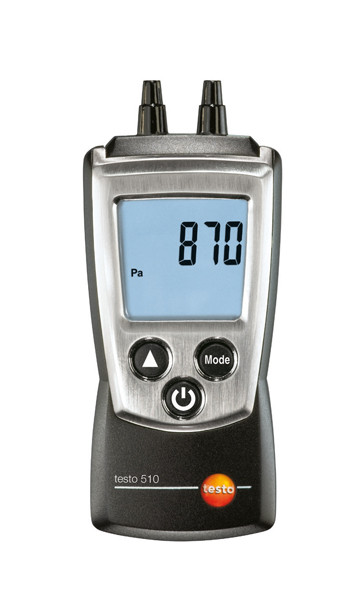

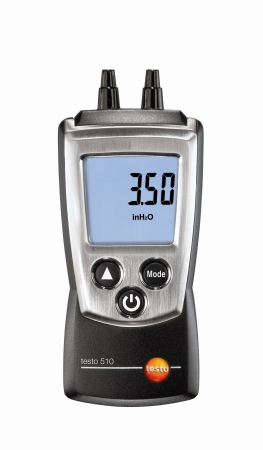

Testo 510 Differential Pressure Meter
|
Item Number: 0560 0510
Manufacturer: Testo
Part Number: 0560 0510
Product Options
* denotes required field
NIST Traceable Calibration - Manometer*
* Whole number only
|
|
Testo 510 Differential Pressure Meter
Features
- Display in Pascal optional over entire measurement range
- Accuracy: +/-0.01 "H20 (0 to 0.12 "H20) / +/-0.02 "H20 (0.13 to 0.4 "H20)
- Temperature compensation
- Magnetic back permits free-hand work
- Flow velocity measurement with Pitot tube (Pitot tube not included in delivery)
- Air density compensation
- Protective cap for safe storage
- Including wrist strap and belt clip
Technical Data:
| Operating Temperature: |
32 to +122 F |
| Battery Type: |
2 Type AAA batteries |
| Battery Life: |
50 Hrs |
| Dimensions: |
4.5 x 1.7 x 1 in |
| Probe Type Differential Pressure: |
| Meas. Range: |
0 to 40.15 inH2O |
| Accuracy: |
+/-0.01 inH2O (0 to 0.12 inH2O) +/-0.02 inH2O (0.12 to 0.4 inH2O)
+/-(0.04 inH2O + 1.5 %of rdg.) (0.41 to 40 inH2O) |
| Resolution: |
0.01 inH2O |
|
