Testo 310 Combustion Analyzer Kit
|
Item Number: 310
Manufacturer: Testo
Part Number: 0563 3100
Product Options
* denotes required field
Choose your Testo 310 Combustion Analyzer Kit*
* Whole number only
|
 Testo 310 Combustion Analyzer Kit Testo 310 Analyzer Probe w/ cone Condensate trap |
|
Testo 310 combustion analyzer kit: Includes: analyzer, rechargeable battery, probe w/ cone, hose, silicon tubing (for pressure), extra particulate filters (5), AC power supply (with USB recharging), pressure plugs (5), & calibration certificate and case.
Testo 310 Functions
- Rugged by design
- The Testo 310 can stand up to the toughest job site.
- 30 seconds to start
- Start testing faster - in only 30 seconds.
- O2 and CO measurement
- Powerful magnets
- Powerful magnets on the 310’s housing allows for hands-free operation.
Fully featured - for better testing and tuning.
- O2, CO (w/ NOx filters standard), CO2
- Draft & Pressure
- Temperature (flue & ambient)
- Combustion efficiency & excess air
- Undiluted CO (CO air free)
- Ambient CO
Testo 310 (W/Printer) Functions
- Rugged by design
- The testo 310 can stand up to the toughest job site.
- 30 seconds to start
- Start testing faster - in only 30 seconds.

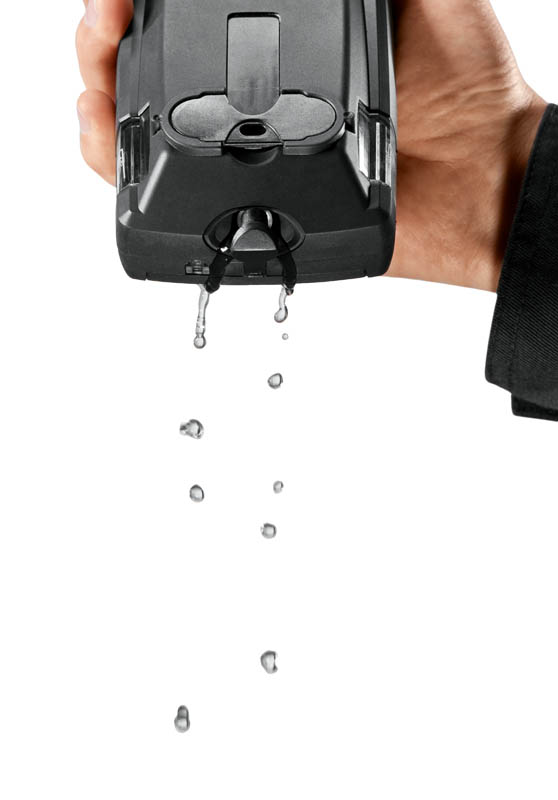

- Condensate trap
- Quick and easy emptying of the integrated condensate trap.
- Powerful magnets
- Powerful magnets on the 310’s housing allows for hands-free operation.
Includes: analyzer, battery, sensors, probe w/ cone, hose, silicon tubing (for pressure), extra particulate filters (5), AC power supply (USB), pressure plugs (5), calibration certificate, case, IR printer (0554 3100), & 2 rolls of thermal paper.

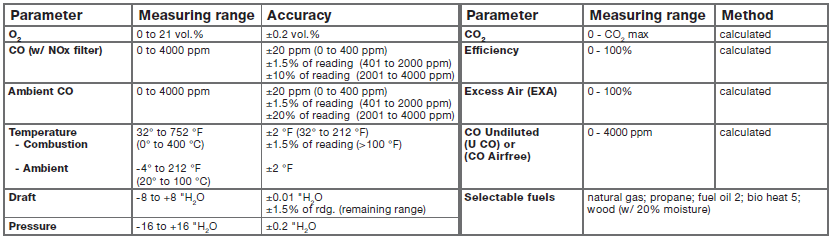

Technical Data
Display The fully featured Testo 310 delivers more combustion
parameters so you can get it right the first time - every time.
Whether you need to perform basic combustion tuning,
maintenance or safety checks, or install a new furnace or
boiler the fully featured Testo 310 delivers results. |
| Probe type CO |
|---|
Meas. Range
|
0 to 4000 ppm |
| Accuracy |
±20 ppm (0 to 400 ppm)
±1,5% of rdg. (401to2000 ppm)
±10% of rdg. (2001to4000 ppm) |
| Resolution |
1 ppm |
| Response time |
60 sec. |
|
| Probe type Draught measurement |
|---|
Meas. Range
|
-20 to +20 °F |
| Accuracy |
±0.03 inH2O (-3.00 to +3.00 inH2O)
±1.5% of rdg. (remaining range) |
|
| Probe type Exhaust gas loss measurement |
|---|
Meas. Range
|
0 to 99.9% |
| Resolution |
0.1% |
|
| Probe type Electrochemical measurement O2 |
|---|
Meas. Range
|
0 to 21 Vol. % |
| Accuracy |
±0.2 Vol. % |
| Resolution |
0.1 Vol. % |
|
| Probe type Efficiency Measurement (Eta) |
|---|
Meas. Range
|
0 to 120% |
| Resolution |
0.1% |
|
Testo 310 Technical Specification
 |
