Supco CR87P Pressure Circular Chart Recorder
|
Item Number: CR87P
Manufacturer: SUPCO
Part Number: CR87P
Product Options
* denotes required field
Pressue Range Selection*
You must select an option for 'Pressue Range Selection'.
* Whole number only
|
|

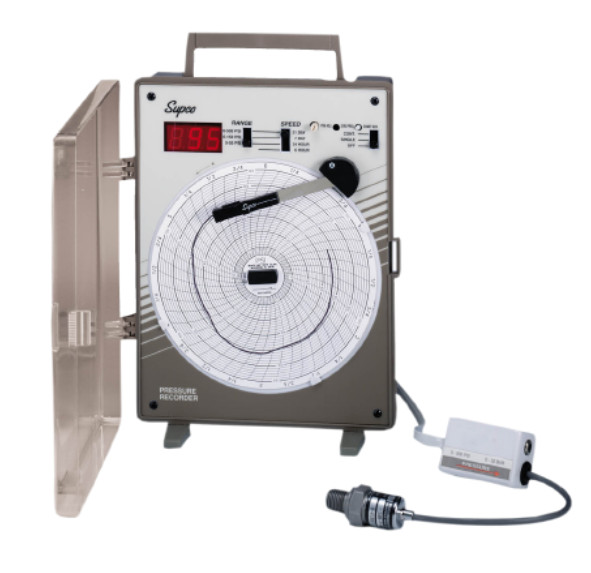

Supco CR87P Pressure Circular Chart Recorder
Features:
- Micro-controller design
- Large LED display
- Front panel controls
- Single or continuous chart rotation
- Choose from 120V or 220V models
- Battery backup
- 12 volt operation. Allows use in vehicular or marine operations
- Comes with 2 cartridge pens and 60 (6" dia.) assorted charts
- Convenient folding handle
- Fold-out support stand
- Free standing or wall mount
- Pressure range 0 to 500 PSI (0 to 35 BAR)
- Stainless steel 17-4 pressure sensor with port ¼ NPT
- 2500 PSI burst pressure
- Rated for any gas or fluid compatible with 17-4 stainless steel
- Programmable speed and pressure ranges
- Snap-on support legs

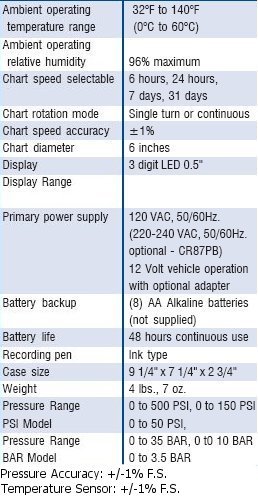

Specifications:
| Pressure range: |
0-50 PSI, 0-150 PSI, 0-500 PSI |
| Pressure reading: |
PSI |
| Operating Voltage: |
110-120V, 50/60 Hz |
Front Panel View:
 |
