Supco CR87HT High Temperature Chart Recorder
|
Item Number: CR87HT
Manufacturer: SUPCO
Part Number: CR87HT
Product Options
* denotes required field
Supco CR87HT Model Selection*
You must select an option for 'Supco CR87HT Model Selection'.
Supco CR87HT Calibration Option*
* Whole number only
|
|

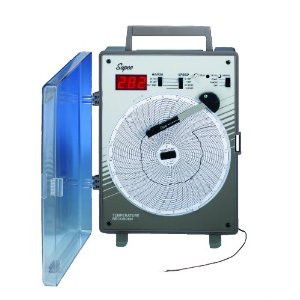

Supco CR87HT High Temperature Recorder
The Supco CR87HT High Temperature Recorder with remote sensor employs advanced microcontroller design that enables this versatile instrument to accurately measure and record temperatures in air, gas, liquids, powders, solids, and semi-solids. Recordings can be made from any distance up to 2000 feet away by using optional long length thermocouple wire. Two selector switches located on the face panel allow for the recording of 3 different temperature ranges at 4 different recording speeds.
Features
- Advanced Microcontroller Design
- Large LED Bright Display
- All functions are from the Front Panel
- Deg F or Deg C Model Available
- All Settings Retained During Power Loss
- Battery Backup to Continue Operation during Power Failure
- 12 VDC Operation Allows use in Vehicular or Marine Application
- Probe is Field Replaceable
- Front Panel Selectable Single or Continuous Chart Rotation
- Fold Away Carrying Handle, Wall Mountable Housing
- Snap-On Extra Support Legs
- Remote Sensor
- High Temperature Model for up to 1000 Deg F
- Custom Probes Available for many applications
Applications
- Food Storage
- Environment, Energy Management
- HVAC, Refrigeration Maintenance
- General Laboratory Monitoring
- Computer Room Monitoring
- Ovens, Dryers, Paint Booths
- Motors, Generators, Bearings
- Process Applications & Pipes
Technical Specifications
| Temperature Scale CR87HT: |
0 Deg F to +250 Deg F (0 Deg C to 120 Deg C)
0 Deg F to +500 Deg F (0 Deg C to +250 Deg C),
+500 Deg F to 1000 Deg F (+250 Deg C to +500 Deg C) |
| Ambient Operating Range: |
+32 Deg F to +140 Deg F (0 Deg C to +60 Deg C) |
| Ambient Operating RH: |
96% Maximum |
| Temperature Accuracy: |
+/- 1 Deg C or 1.8 Deg F |
| Chart Speed Selectable: |
6 Hours, 24 Hours, 7 Days, 31 Days |
| Chart Rotation Mode: |
Selectable, Single Turn or Continuous. |
| Chart Speed Accuracy: |
+/- 1% |
| Chart Diameter: |
6 Inches |
| Display: |
3-1/2 Digit LED 0.5 |
| Temperature Sensor CR87HT: |
6' Long High Temperature Type "J" Thermocouple Wire Probe |
| Primary Power Supply: |
120 VAC, 50/60 Hz. (220-240 VAC, 50/60 Hz. Optional) |
| Alternate Power: |
12 Volt Vehicle Operation with Optional Adapter |
| Battery Back-Up: |
8 AA Alkaline Batteries (Not Included) |
| Battery Life: |
48 Hours Continuous Use |
| Recording Pen: |
Ink Type |
| Case Size: |
9 1/4" x 7 1/4" x 2 3/4", 4 Ibs., 7 oz. |
| Weight: |
4 lbs., 7 oz. |
|
Supco CR-1000 Replacement box of recording charts for SUPCO CR87HT chart recorder. Size: 6 Inches; 60 Per Box
|
Replacement Pens for SUPCO Chart Recroders. Available in black, red or blue.
|
