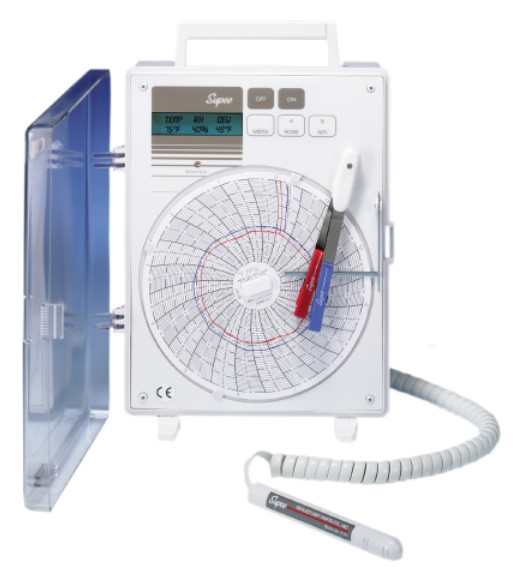

Supco CR4 Universal Recorder
The CR4 six (6) inch Universal Chart Recorder offers the ultimate in flexibility. Choose one of 5 sensors for your application, connect it to the CR4 Universal Recorder, make desired speed selection and start recording. When your application calls for a different sensor, just change probes for the same recorder.
Features:
-
Automatic Probe recognition
-
Front panel touch pad
-
Real Time data view
-
Battery backup (CR4)
-
Field replaceable probes
-
Field calibration of probes
-
Independent Channel Alarms (CR4)
Interchangeable Probes:
-
KTH Temperature and Humidity Probe
-
KTT Dual Temperature Probes
-
KTP Temperature and Pressure Probes
-
KPP Dual Pressure Probes
-
KTE Temperature/Event Probes

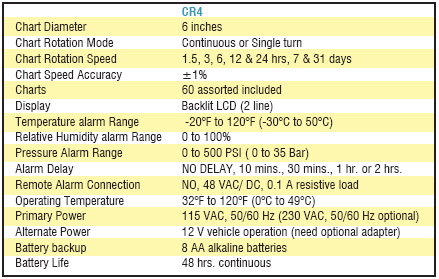

Specifications:

|
Supco KTH is complete with combination temperature, humidity probe. Temperature Range: -40°F to 130°F ±2°F
|
Supco KTE is complete with precision temperature probe, event probe, a connecting cable and adapter. Temperature Range: -40°F to 130°F ±2°F
|
Supco KTT is complete with two precision temperature probes. Temperature Range: -40°F to 130°F ±2°F
|
Supco KTP is complete with independent precision pressure and temperature probes. Temperature Range: -40°F to 130°F ±2°F
|
Supco KPP is complete with two pressure probes. Temperature Range: -40°F to 130°F ±2°F
| |
