Sineax Model TI-816 Low Cost Loop Signal Isolator
|
Item Number: 816
Configuration: 816-5110
Manufacturer: GMC Instruments (Gossen Metrawatt)
Part Number: 816
Product Options
* denotes required field
TI-816 Output Signal Configuration*
* Whole number only
Quantity Discounts - Order a quantity in the range below to receive the discount
| Quantity | Amount |
| 5 to 9 | $117.00 |
| 10 or more | $110.50 |
|
|
 Sineax Model TI-816 Low Cost Loop 4-20mA Signal Isolator |
|
Sineax TI-816 Loop Signal Isolator
Ideal for DC current loop isolation, the Sineax TI-816 has an input signal that can remain a 4-20mA signal or be changed to a 0-10 V DC signal, all without requiring a power supply. It has both an efficient and compact design. This condensed casing allows numerous isolators to be installed next to one another on any DIN rail.
Features:
- Input Signal: 0-20mA or 4-20mA
- Highly Accurate Device, +/-0.1%
- No Power Supply Needed
- Meets EMC 1010 Guidelines, CE Approved
- Small Housing, High Density Installations
- 500 Vrms Test Voltage, 800 V Surge
Technical Specifications:
| Input: |
0-20 or 4-20 mA |
| Max Input: |
50 mA |
| Voltage Drop: |
<2 Volts (500 Ohm Burden) |
| Overshoot: |
Typically < 5 uA |
| Accuracy: |
<+/-0.1% for mA Output
<+/-0.2% for Volt Output |
| Output: |
0-20 mA or 0-10 V DC |
| Max Burden: |
600 Ohm Input
100 Ohm Output (mA DC)
>= 5 MOhm Output (V DC) |
| Safety: |
UL94 Flammability, IEC 1010, En 60 529 |
| Housing Protection: |
Lexan, IP40 Housing, IP20 Terminals |

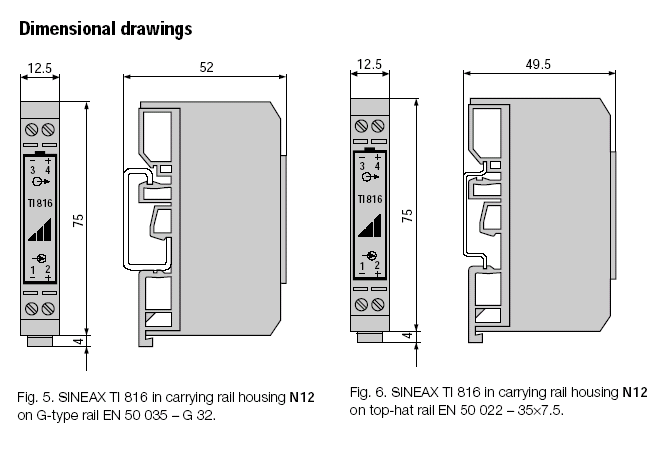

| Size: |
12.5 x 79 x 50 mm (WHD), 35 Grams |
| Operating Temp: |
-20 to 65C |
| Mounting: |
Rail, Any Direction |
| Shock: |
50 G's, 10 Shocks in 3 Directions |
|
