Simpson MINI-MAX M245 4-1/2 Digit DC Voltage Digital Panel Meter
|
Item Number: M245
Manufacturer: Simpson
Part Number: M245
Product Options
* denotes required field
Simpson DPM Display Options*
You must select an option for 'Simpson DPM Display Options'.
Simpson DPM Power Supply Options*
You must select an option for 'Simpson DPM Power Supply Options'.
Simpson DPM DC Voltage Input Selection*
You must select an option for 'Simpson DPM DC Voltage Input Selection'.
Simpson DPM Excitation Output Selection (N/A w/Frequency)*
You must select an option for 'Simpson DPM Excitation Output Selection (N/A w/Frequency)'.
Panel Meter NIST Calibration & Scaling*
You must select an option for 'Panel Meter NIST Calibration & Scaling'.
If Ordering Calibration and Scaling, Please Specify Input Signal and Scale
* Whole number only
|
|
Simpson MINI-MAX M245 4-1/2 Digit DC Voltage Digital Panel Meter
The Simpson Mini-Max Voltage Indicators provide high quality, accuracy and reliability in a compact, 60mm deep case. Units offer 4-1/2 digit, 0.5” (12.7mm) LCD display and are available with a bright red, negative image backlight option. All units feature user-selectable decimal point, auto zero and scaling capabilities.
A unique mounting bracket is provided to allow for vertical or horizontal stacking of multiple indicators. All Mini-Max units feature a 3/64 DIN, high-impact plastic case. The standard units have a clear viewing window, and the units with optional negative image, red backlighting have a red window.
Features
- Minimum Depth Indicator - Less Than 2.5” (60mm) of Space Required Behind the Panel
-
Stackable Mounting Bracket Included for Easy Installation
-
4-1/2 Digit, 0.5” (12.7mm) High LCD Display with Optional Negative Image, Bright Red Backlighting
-
Broad Range Display Scaling
-
Standard Screw Terminals for Easy Installation
-
Four Voltage Ranges: 200mV, 2V, 20V, 200V
-
85-250VAC or 9-32VDC Power Supply

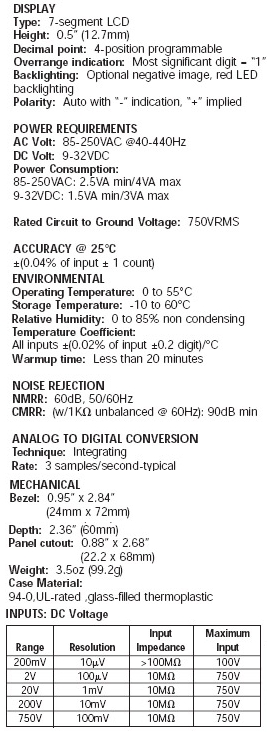

Specifications:
Note: 750 VDC Range no longer available.
|
