Simpson MINI-MAX M240 4 Digit Temperature Indicator
The Simpson Mini-Max Temperature Indicators provide high quality, accuracy and reliability in a compact, 60mm deep case! Units offer a 4-Digit, 0.56" (12.7 mm) bright red LED display. The four input types and choice of degrees C or F display are jumper selectable and can be changed with no recalibration necessary.
A unique mounting bracket is provided to allow for vertical and horizontal stacking of multiple indicators. All Mini-Max units feature 3/64 DIN, high impact plastic. Screw terminals are provided for easy wiring of the power supply and input signal connection.
Features:
- Minimum Depth Indicator! Less Than 2.5” (60 mm) of Space Required Behind the Panel
- Field Selectable Input
- Degrees F/C Switchable
- Fits 3/64 DIN Cutout, 22mm x 68mm
- Stackable Mounting Bracket Included for Easy Installation
- 4 Digit, 0.56” High Red LED Display
- User Selectable Input Type (J or K Thermocouple, RTD or mV)
- Standard Screw Terminals for Easy installation
- Power with 85-250 VAC

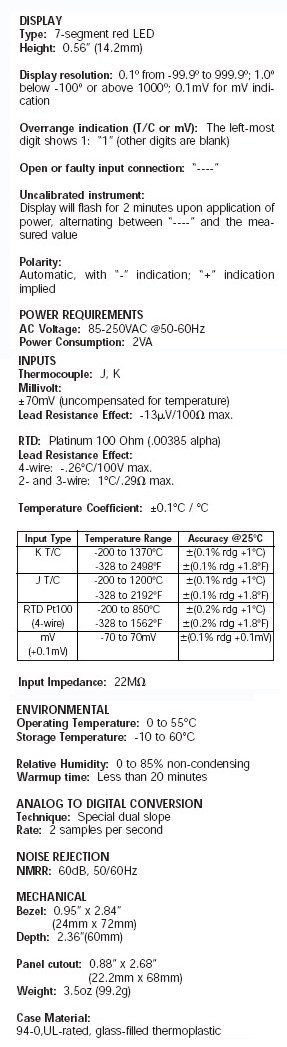

Specifications:
|
