Simpson MINI-MAX M235 3-1/2 Digit DC Process Digital Panel Meter
|
Item Number: M235
Manufacturer: Simpson
Part Number: M235
Product Options
* denotes required field
Simpson DPM Display Options*
You must select an option for 'Simpson DPM Display Options'.
Simpson DPM Power Supply Options*
You must select an option for 'Simpson DPM Power Supply Options'.
Simpson DPM DC Process Input Selection*
You must select an option for 'Simpson DPM DC Process Input Selection'.
Simpson DPM Excitation Output Selection (N/A w/Frequency)*
You must select an option for 'Simpson DPM Excitation Output Selection (N/A w/Frequency)'.
Panel Meter NIST Calibration & Scaling*
You must select an option for 'Panel Meter NIST Calibration & Scaling'.
If Ordering Calibration and Scaling, Please Specify Input Signal and Scale
* Whole number only
|
|
Simpson MINI-MAX M235 3-1/2 Digit DC Process Digital Panel Meter
The Simpson Mini-Max Process Indicators provide high quality, accuracy and reliability in a compact, 60mm deep case. Units offer 3-1/2 digit, 0.5” (12.7mm) LCD display and are available with a bright red, negative image backlight option. All units feature user-selectable decimal point, auto zero and scaling capabilities.
A unique mounting bracket is provided to allow for vertical or horizontal stacking of multiple indicators. All Mini-Max units feature a 3/64 DIN, high-impact plastic case. The standard units have a clear viewing window, and the units with optional negative image, red backlighting have a red window.
Features:
- Minimum Depth Indicator - Less Than 2.5” (60mm) of Space Required Behind the Panel
- Stackable Mounting Bracket Included for Easy Installation
- 3-1/2 Digit, 0.5” (12.7mm) High LCD Display with Optional Negative Image, Bright Red Backlighting
- Broad Range Display Scaling
- Standard Screw Terminals for Easy Installation
- Four Process Ranges: 4-20mA, 1-5VDC, 0-10VDC, 0-100VDC
- Scales 0 - 100% Power
- 85-250VAC or 9-32VDC Power Supply

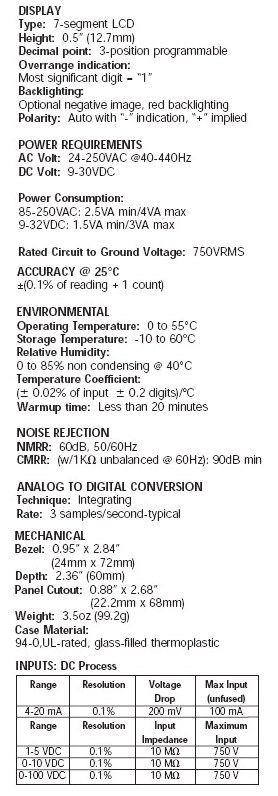

Specifications:
|
