Simpson Mini M145 Series 4-1/2 Digit DC Current Digital Panel Meter
|
Item Number: M145
Manufacturer: Simpson
Part Number: M145
Product Options
* denotes required field
Simpson DPM Display Options*
You must select an option for 'Simpson DPM Display Options'.
Simpson DPM Power Supply Options*
You must select an option for 'Simpson DPM Power Supply Options'.
Simpson DPM DC Current Input Selection*
You must select an option for 'Simpson DPM DC Current Input Selection'.
Simpson DPM Backlight Power*
You must select an option for 'Simpson DPM Backlight Power'.
Panel Meter NIST Calibration & Scaling*
You must select an option for 'Panel Meter NIST Calibration & Scaling'.
If Ordering Calibration and Scaling, Please Specify Input Signal and Scale
* Whole number only
|
|
Simpson Mini M145 Series 4-1/2 Digit DC Current Panel Meter
The Simpson Mini DC Current Indicators provide high quality, accuracy, and reliability in a compact 12mm deep case. M145 has a 4-1/2 digit, 0.5” LCD display and is available with a negative image, bright red backlight option. Mini M145s feature user-selectable decimal point and display hold.
Three power supply choices are available, and a low battery indication is provided for 9VDC battery applications. Mini units feature a standard 3/64 DIN high-impact plastic case. The standard LCD units have a clear viewing window. The units with optional negative image, bright red backlighting, have a red window.
Features:
- Minimum Depth Indicator - Less than 1.25" (31.75mm) of Space Required Behind the Panel

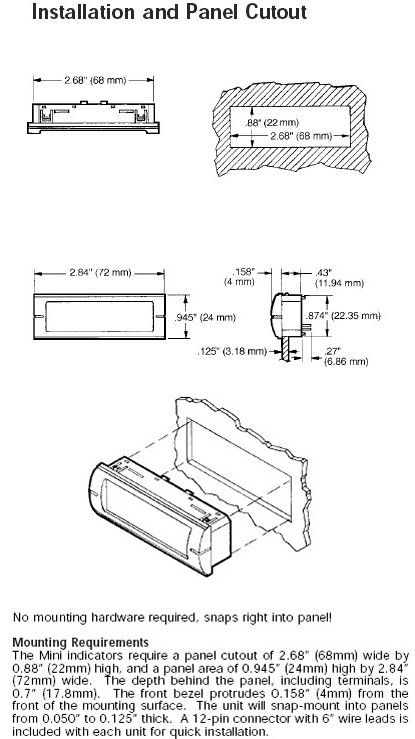

- Fits 3/64 DIN Cutout, 22mm x 68mm
- 4-1/2 Digit, 0.5" (12.7mm) High LCD
- User-Selectable Decimal Point
- Optional Negative Image, Bright Red Backlighting
- 12 Pin Mating Connector With 6" Lead Wires Included
- Display Hold Standard on All Units
- Four Current Ranges: 200
- uA, 2mA, 20mA, 200mA
- Three Power Supply Alternatives: 5VDC, +/-5VDC or 9VDC (With Low Battery Indication)

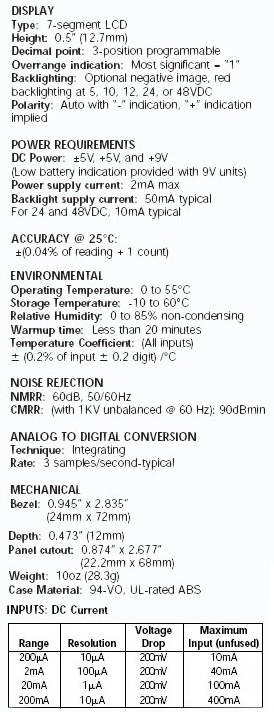

Specifications:
|
