Simpson Falcon F35 Series 3-1/2 Digit Frequency Digital Panel Meter
|
Item Number: F35
Manufacturer: Simpson
Part Number: F35
Product Options
* denotes required field
Simpson DPM Power Supply Options*
You must select an option for 'Simpson DPM Power Supply Options'.
Simpson DPM Frequency Input Range*
You must select an option for 'Simpson DPM Frequency Input Range'.
Panel Meter NIST Calibration & Scaling*
You must select an option for 'Panel Meter NIST Calibration & Scaling'.
If Ordering Calibration and Scaling, Please Specify Input Signal and Scale
* Whole number only
|
|
Simpson Falcon F35 Series 3-1/2 Digit Frequency Panel Meter
The Simpson Falcon Series digital indicators are premium quality 1/8 DIN meters for industrial applications. Two input ranges are available, 20-199.9Hz or 20-1999Hz, with choice of RMS or Square Wave. The Falcon has a 0.56" bright red LED display for high visibility. Compactly designed for applications requiring minimal rear panel depth, the Falcon fits a standard 1/8 DIN panel cutout (92mm x 45mm) and requires less than 3" behind the panel. A screw terminal connector is a standard feature for easy wiring of the power supply and signal input connections.
Features:
- Full 3-1/2 Digit, Bright Red 0.56" (14.2mm) Display
- Short 2.94" (74.7mm) Deep, 1/8 DIN Case
- Screw Terminal Connector for Easy Installation
- Two Frequency Ranges: 20 - 199.9 Hz or 20 - 1999 Hz
- Choice or RMS or Square Wave
- 120 or 220 VAC Power

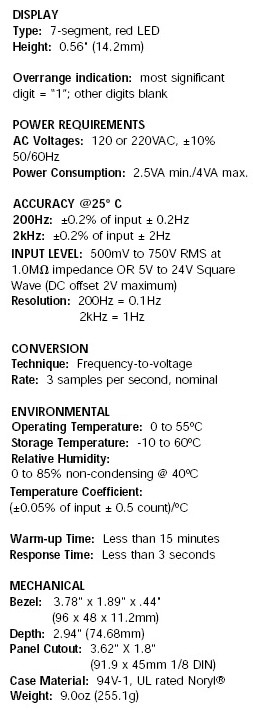

Specifications:
|
