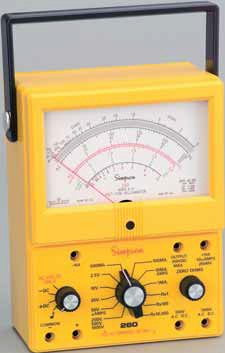

Simpson 260-8Xi Series Analog VOM Meter

Our Price: $305.82

Item Number: 260-8Xi

Configuration: -12395

Manufacturer: Simpson

Part Number: 260-8Xi

Product Options

* denotes required field

Simpson 260 Relay Overload Protection*

Standard Fuse Only Protection 260-8Xi

Option P - Resettable Relay Protection 260-8XPI (+ $74.98)

NIST Traceable Calibration - Multimeter*

Calibration not Included

Standard Calibration, Simpson 260-8Xi (+ $55.00)

ISO 17025 Accredited Calibration - Simpson 260-8Xi (+ $85.00)

Quantity:

Email this page to a friend

Simpson 260-8Xi Analog Volt Ohm Meter

The 260-8Xi offers all of the advantages of the Simpson 260-8, plus several new safety features. The bright yellow ABS housing is easy to see and also provides increased drop protection. The 260-8XPi includes a resettable overload protection circuit and audible continuity check. Both versions come with batteries, manual and test leads with alligator clips.

Features:

36 Measurement Ranges
AC/DC Voltage & Current
Resistance
Connections Safeguards -Standard Size Reversed/Recessed Safety Jack Prevent
Operator or Tool Contact with Electrical Connections on the Instrument
Overload Protection (260-8P Only)
Rugged Construction
Fully Portable for Lab or Field Work
Versatile & Functanial Test Leads w/Clips
Reverse Bannana Jacks for Safety
Only Two Knobs Control all Functions
Durable ABS plastic case provides impact resistance and drop protection
Bright yellow housing for enhanced visibility and safety awareness
Self-shielding taut-band meter movement provides added shock resistance
Large, tri-colored dial with mirrored scale to prevent parallax error
More than 20 measurement ranges for DC voltage and current, AC voltage and current, resistance

Technical Specifications:

DC Voltage:

Ranges	Accuracy	Max Indication
250 mV, 1V, 2.5V, 10V, 25V, 50V, 250V, 500V, 1000V	2% FS	20 k Ohm per Volt

AC Voltage:

Ranges	Accuracy	Max Indication
2.5V, 10V, 25V, 50V, 250V, 500V, 1000V	3% FS	5 k Ohm per Volt

Resistance:

Ranges	Accuracy	Max Indication
Rx1	2.5 Deg of Arc	0-2K Ohm
Rx100	2 Degrees of Arc	0-200K Ohm
Rx10K	2 Degrees of Arc	0-20M Ohm

DC Current:

Ranges	Accuracy	Voltage Drop
50 mA, 1 mA, 10 mA, 100 mA, 500 mA, 10A	1.5% Full Scale (50 mA) 2% FS All Other Ranges	250mV on 50 µA, 1ma; 255mV on 10mA, 10A;300mV on 100mA; 500 mV on 500 mA

AC Current:	Up to 250 AC Amps with Optional Clamp
Decibles:	5 Ranges: -20 to + 50 dB (0 dB = 1 mW/600 Ohm)
Rated Voltage:	1000 V (AC or DC) max
Fuse:	1A@ 250 V, 2A@600V
Batteries:	1,5V, 9V
Size:	7" H x 5.5" W x 3.1" D, 3 Lbs.
