Shimpo Instruments FGE-X DART Series Digital Force Gauge
Our Price: CALL FOR PRICING
Item Number: FGE-X
Manufacturer: Shimpo
Part Number: FGE-X
|
|

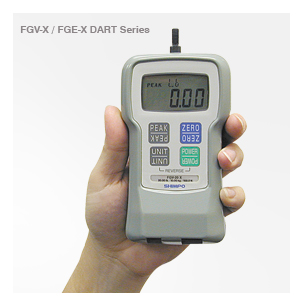

Shimpo Instruments FGE-X DART Series Digital Force Gauge
The Shimpo workhorse FGE Digital force gauge just got better! Faster, smarter, easier to use!
The 1000 series, with its fast 1000 Hz update rate, is able to capture the highest force peaks. With variable display update rate superior accuracy as the FGV-XY series, these gauges feature unique 180 degree flip displays, permitting the user to read the display right-side up. Additional enhancements are; dual direction keypad, selectable force direction indication, and selectable power on/off settings.
The Shimpo FGE digital force gauge is designed to ergonomically fit in the palm of your hand, the rugged, all metal construction of the FGE-X permit accurate measurement and display of compression and tension forces up to 100 pounds. (up to 1,000 lbs using the FGV-1000HX)

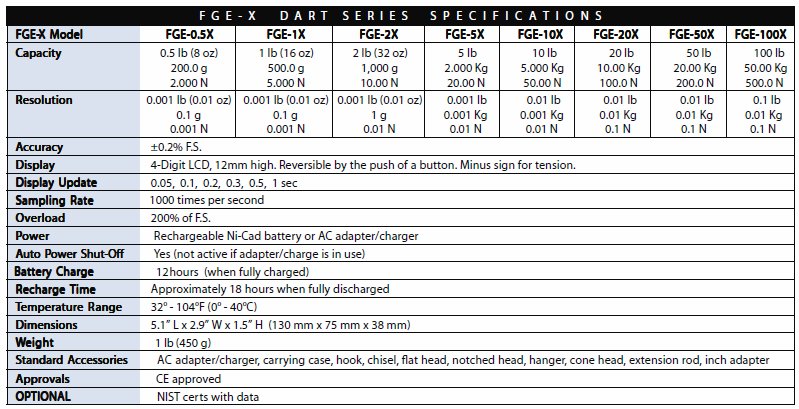

Features Benefits - Shimpo FGE Force Gauge
- 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
- High accuracy +/-0.2% F.S., ideal for strict tolerances
- Measure and record compression and tension tests- permits true “push-pull” testing

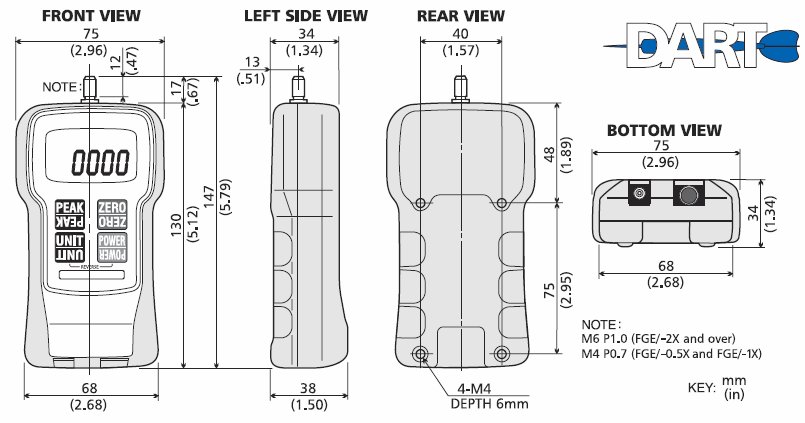

- 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
- 1 million operation load cell with superior overload protection provides a long-life, damage free product
- Rugged, ergonomic die cast aluminum construction allows usage on production floor
- Variable display response rate aids viewing readings
- Quick retrieval of peak measurement with a single push button
- Flexible user preference with one button selection of engineering units
- Dual power capable with rechargeable battery or AC line voltage
- CE Mark
  |
