Rotronic LOG-HC2-RC-US Humidity & Temperature Data Logger
|
Item Number: LOG-HC2-RC-US
Manufacturer: Rotronic
Part Number: 1570.LOG-HC2-RCUS
* Whole number only
|
|
Rotronic LOG-HC2-RC-US Humidity & Temperature Data Logger
Features
- Records relative humidity and temperature data
- Temperature application range: –40 to + 85 °C
- HygroClip 2 probe accuracy: ±0.8 %RH and ±0.1°C
- Interchangeable digital probe (any HygroClip 2 probe model)
- Radio frequency: 915 MHz (US standard) for optimum penetration through walls
- High storage capacity: up to 250,000 Humidity & Temperature values with time, date and serial number
- Long-term recording up to 6 years without battery replacement
- Non volatile memory
- Transmission distance: up to 100 m / 110 yd (free field)
- USB or LAN wireless adapter
- Data security: PIN (for activation and data access)
- Plastic housing, white, IP65

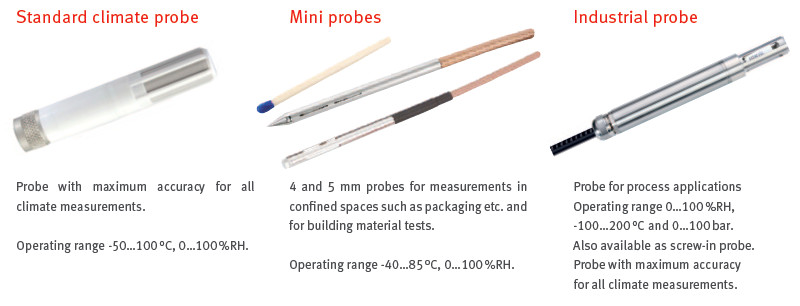

Probes for the LOG-HC2
Technical Specifications
| Probe |
HygroClip 2 humidity temperature probe (any model) |
|---|
| Number of probe inputs |
1 |
|---|
| Memory size |
2,048 KB non-volatile, approximately 500,000 values |
|---|
| Data logging |
Measured values, time, date and serial number |
|---|
| Log interval |
Adjustable from 1 min. to 12 hours |
|---|
| Wireless interface |
USB or LAN (RJ45) |
|---|
| Radio frequency |
915 MHz Region 2 / Americas, ERP:3mW (typical) |
|---|
| Software |
ROTRONIC HW4 v3.1.0 or higher |
|---|
| Data processing via HW4 |
Yes |
|---|
| Device Protection by password |
Yes |
|---|
| External data logging |
PC or laptop with HW4 software |
|---|
| Battery |
Lithium (Li-SOCl2) Battery 2400 mAh (Factory Replacement) |
|---|
| Operating range electronics |
-40…85 °C / 0…100 %RH |
|---|
| Dimensions (w/o probe) |
140 x Ø 20 mm / 5.5” x Ø 0.78” |
|---|
| Enclosure material |
POM |
|---|
| IP protection rating |
IP65 |
|---|
| Weight (w/o probe) |
80 g / 2.8 oz |
|---|
| FDA/GAMP compatibility |
FDA 21 CFR Part 11 and GAMP compatible |
|---|
|
The Rotronic LOG-DS-EXT-US comes with a standard SMA-Antenna and has a radio frequency of 915 MHz.
|
The Rotronic LOG-PT1000-RC-US temperature ranges from –40 to 85 °C and the high storage capacity is up to 500,000 measured values with time, date and serial number.
|
The Rotronic LAN-INTERFACE-US comes with a standard SMA-Antenna and it manages up to 100 digital wireless data loggers per adapter (915 MHz).
| |
