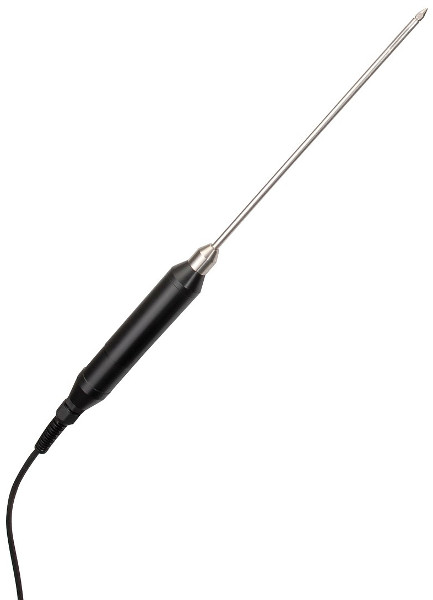

Rotronic HygroClip HC2-P05 Mini Insertion Probe
|
Item Number: HC2-P05
Manufacturer: Rotronic
Part Number: 0210.HC2-P05
* Whole number only
|
|
Rotronic HygroClip HC2-P05 Mini Insertion ProbeFeatures
- Humidity measuring range: 0..100 %RH
- Temperature limits: -40…85 °C (-40…185 °F)
- Probe tip: diameter: 5 mm (0.2”),length: 200 mm (7.9”)
- Probe cable length: 2 m (6.5 ft)
- Handgrip: POM, black -, barrel: PPS, black

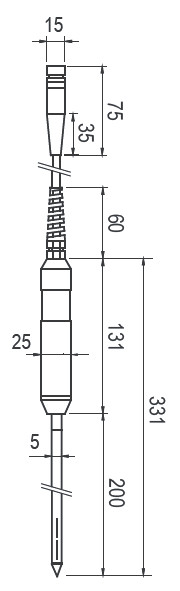

Dimensions
Technical Specifications
| Dimensions |
∅ 5 x 200 mm |
|---|
| Weight |
160 g |
|---|
| For use with |
HygroLab C1, HP23-AW-A |
|---|
| Operating range electronics |
-40…85 °C / 0…100 %rh |
|---|
| Range of application |
-40…85 °C (-40…185 °F) / 0…100 %RH |
|---|
| Accuracy at 23 ±5 °C |
± 0.015 aw / 1.5 %rh / ±0.3 K |
|---|
| Power supply |
3.2…5 VDC, calibrated at 3.3 VDC, current: ~4.5 mA |
|---|
| Long-term stability sensor |
<1 %rh / year |
|---|
| Humidity sensor |
HYGROMER® WA-1 / Pt-100, 1/3 DIN Class B |
|---|
| Temperature dependence |
0.001 K/K, 0.0002 aw/K |
|---|
| Filter type |
No filter available |
|---|
| Response time t 63 |
<15 sec. |
|---|
| Psychrometric calculations |
Dew or frost point |
|---|
| Start-up time |
1,5 s |
|---|
| Measurement interval |
1 s |
|---|
| Material |
Stainless steel DIN 1.4305 (probe), POM (handle) |
|---|
| IP protection rating |
IP30 |
|---|
| FDA / GAMP |
FDA 21 CFR part 11 / GAMP5 |
|---|
| CE / EMC conform |
2007 / 108 / EG |
|---|
|
