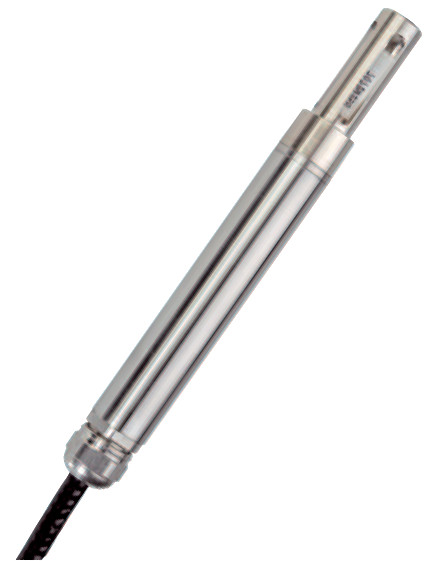

Rotronic HygroClip HC2-IM Stainless Steel Probe
|
Item Number: HC2-IM
Manufacturer: Rotronic
Part Number: 0210.HC2-IM
Product Options
* denotes required field
Model Selection*
You must select an option for 'Model Selection'.
* Whole number only
|
|
Rotronic HygroClip HC2-IM Stainless Steel ProbeFeatures
- Humidity measuring range: 0..100 %RH
- Temperature limits at sensor:-100…200 °C (-148…392 °F)
- Barrel - Stainless steel:15mm diameter
IM1:length: 120 mm (4.7”), IM3:length: 280 mm (11.0”)
- Probe cable length: IM102 / IM302: 2 m (6.5 ft)
- Filter base (SP-MSB15)with filter cartridge (specify when ordering)
- Weight: approx. 260 g (9.2 oz) to approx. 680 g (24.0 oz) depending on model

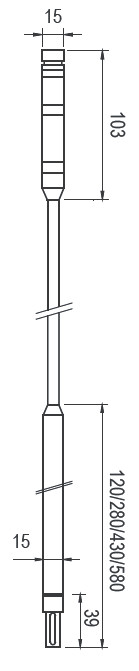

Dimensions
Technical Specifications
|
HC2-IM102 |
HC2-IM302 |
| Dimensions |
Ø 15 x 130 mm |
Ø 15 x 280 mm |
| Accuracy |
±0.8 %RH, ±0.1 K, at 23 °C ±5 K |
| Power supply |
3.3 VDC ±0.1 VDC, current: ~4.5 mA |
| Sensor type |
ROTRONIC HYGROMER® IN-1, Pt100 Class A |
| Response time |
<15 s, without filter |
| Housing material |
Stainless steel, DIN1.4305 |
| Weight |
260 g |
400 g |
|
