Rotronic HygroClip HC2-IE3 Pressurized Environment Probe

Our Price: $1,395.00

Item Number: HC2-IE302

Manufacturer: Rotronic

Part Number: 0210.HC2-IE302

Quantity:

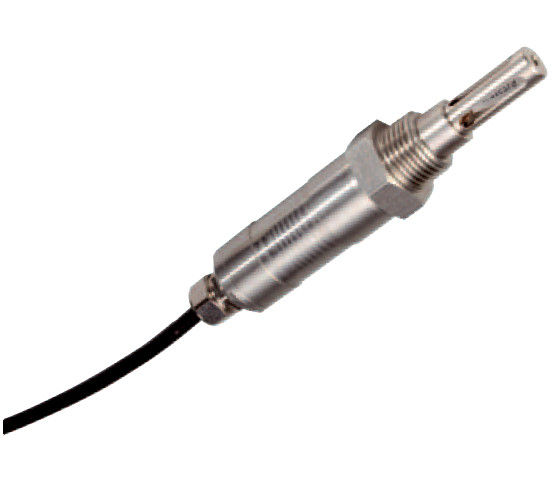

Rotronic HygroClip HC2-IE3 Pressurized Environment Probe

Features

Humidity measuring range: 0..100 %RH
Temperature limits at sensor:-100…200 °C (-148…392 °F)
Barrel - Stainless steel
NPT ½” thread for maximum 100 bar / 1450 PSI
Probe cable length:
IE302: 2 m (6.5 ft)
Filter base (SP-MSB15)with filter cartridge (specify when ordering)
Weight with 2 m cable: approx. 290 g (10.2 oz) + 80 g (2.8 oz) per additional meter

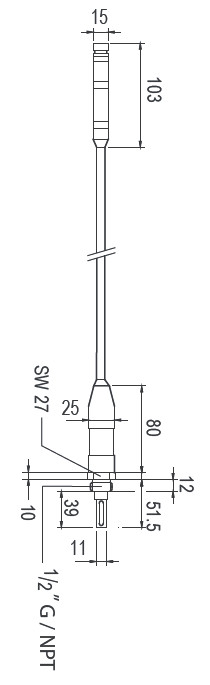

Dimensions

Technical Specifications

Probe type	½" NPT with ROTRONIC connector
Accuracy	±0.8 %RH, ±0.1 K, at 23°C ±5 K
Power supply	3.3 VDC ±0.1 VDC, current: ~4.5 mA
Sensor type	ROTRONIC HYGROMER® IN-1, Pt100 Class A
Pressure	Pressure resistant to 100 bar / 1450 PSI
Response time	<15 s, without filter
Housing material	Stainless steel, DIN1.4305
Weight	290 g
