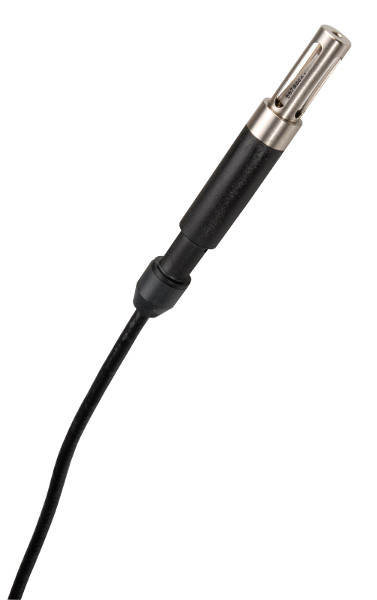

Rotronic HygroClip HC2-IC PPS Probe
|
Item Number: HC2-IC
Manufacturer: Rotronic
Part Number: 0210.HC2-IC
Product Options
* denotes required field
Model Selection*
You must select an option for 'Model Selection'.
* Whole number only
|
|
Rotronic HygroClip HC2-IC PPS ProbeFeatures
- Range of application: -100…200 °C1 / 0…100 %rh
- Digital interface (UART) and scalable analog outputs, 0…1 V
- Standard output scaling: 0…1 V = -40…60 °C / 0…100 %rh
- Adjusted at 23 °C and 10, 35, 80 %rh
Dimensions
Technical Specifications
|
HC2-IC102 |
HC2-IC302 |
|---|
| Dimensions |
Ø 15 x 100 mm |
Ø 15 x 250 mm |
|---|
Accuracy
|
±0.8 %RH, ±0.1 K, at 23 °C ±5 K |
|---|
| Power supply |
3.3 VDC ±0.1 VDC, current: ~4.5 mA |
|---|
| Sensor type |
ROTRONIC HYGROMER® IN-1, Pt100 Class A |
|---|
| Response time |
<15 s, without filter |
|---|
| Material |
PEEK, brass, chemically nickel-plated |
|---|
| Weight |
230 g |
260 g |
|---|
|
