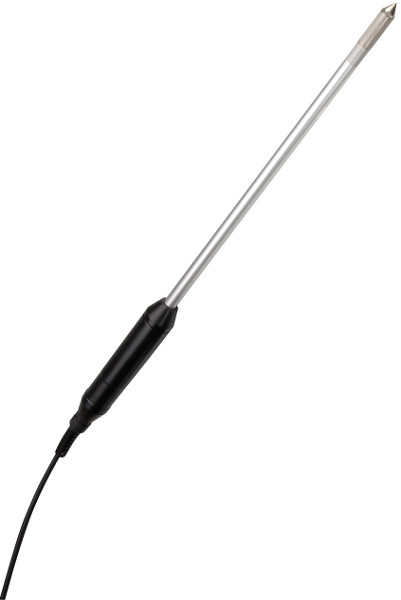

Rotronic HygroClip HC2-HP28 Insertion Probe
|
Item Number: HC2-HP28
Manufacturer: Rotronic
Part Number: 0210.HC2-HP28
* Whole number only
|
|
Rotronic HygroClip HC2-HP28 Insertion Probe
Features
- Range of application: -40…85 °C / 0…100 %rh
- Digital interface (UART) and scalable analog outputs, 0…1 V
- Standard output scaling: 0…1 V = -40…60 °C / 0…100 %rh
- Adjusted at 23 °C and 10, 35, 80 %rh

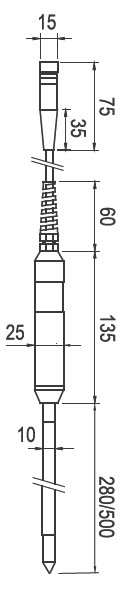

Dimensions
Technical Specifications
| Probe length |
Ø 10 x 280 mm |
| Accuracy |
±0.8 %RH, ±0.1 K, at 23°C ±5 K |
| Power supply |
3.3…5 VDC, adjusted at 3.3 VDC, current: ~4.5 mA |
| Filter type |
Sintered steel |
| Sensor type |
ROTRONIC HYGROMER® IN-1, Pt100 Class A |
| Response time |
<20 s, with filter |
| Material |
Stainless steel DIN 1.4305 (probe), POM (handle) |
| Weight |
200 g |
|
