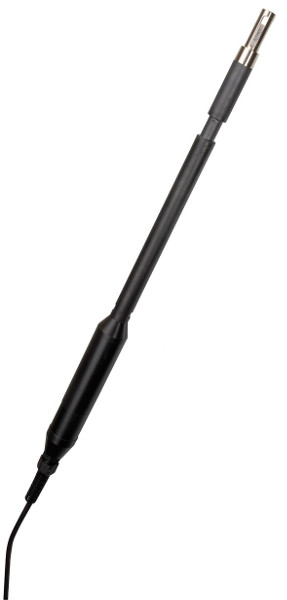

Rotronic HygroClip HC2-HK High Temperature Probe
|
Item Number: HC2-HK
Manufacturer: Rotronic
Part Number: 0210.HC2-HK
Product Options
* denotes required field
Model Selection*
You must select an option for 'Model Selection'.
* Whole number only
|
|
Rotronic HygroClip HC2-HK High Temperature Probe
Features
- Humidity measuring range: 0..100 %RH
- Temperature limits at sensor:
HK25: -100…150 °C (-148…302 °F)
HK40: -100…200 °C (-148…392 °F)
- Barrel:
HK25: dia.: 15 mm (0.6”) length: 250 mm (9.8”)
HK40: dia.: 15 mm (0.6”)length: 400 mm (15.7”)
- Probe cable length: 2 m (6.5 ft)
- Handgrip: POM, black -, barrel: PPS, black
- Filter base (NSP-ME) with wire mesh filter cartridge (SP-M15)
- Weight:HK25: approx. 210 g (7.4 oz)HK40: approx. 240 g (8.5 oz)

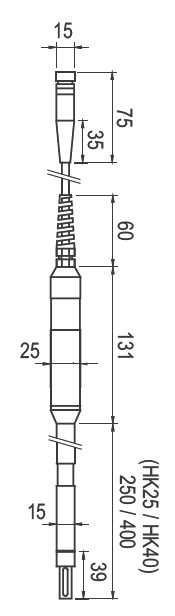

Dimensions
Technical Specifications
|
HC2-HK25 |
HC2-HK40 |
| Probe type |
Handheld probe with 2 m TPU cable |
| Dimensions |
Ø 15 x 250 mm |
Ø 15 x 400 mm |
| Accuracy |
±0.8 %RH, ±0.1 K, at 23 °C ±5 K |
| Power supply |
3.3 VDC ±0.1 VDC, current: ~4.5 mA |
| Sensor type |
ROTRONIC HYGROMER® IN-1, Pt100 Class A |
| Response time |
<15 s, without filter |
| Housing material |
PEEK, brass, chemically nickel-plated |
| Weight |
210 g |
240 g |
| Filter |
Wire mesh filter |
|
