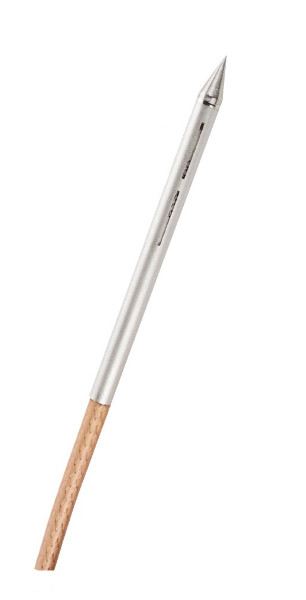

Rotronic HygroClip HC2-C04 Mini Probe

Our Price: $1,195.00

Item Number: HC2-C04

Manufacturer: Rotronic

Part Number: 0210.HC2-C04

Quantity:

Rotronic HygroClip HC2-C04 Mini Probe

Features

Dimensions

Technical Specifications

Probe type	Cable probe
Operating range electronics	-40…85 °C / 0…100 %rh
Accuracy at 23 ±5 °C	±1.5 %rh / ±0.3 K
Accuracy w. adjustment profile "standard"	at 23 °C / 10, 35, 80 %rh ± 1.5 %rh / ± 0.3 K
Power supply / Power consumption	3.2…5 VDC ±0 % / < 4.5 mA
Long-term stability sensor	<1 %rh / year
Humidity sensor	Hygromer IN-1
Temperature sensor	PT100 1/3 DIN Class B
Response time t 63	<15 sec.
Allowed wind speed	3 m/s
Psychrometric calculations	Dew or frost point
Reproducibility Airchip	<0.02 %rh / 0.01 K
Exploitation software	ROTRONIC HW4.2
Probe adjustment by software	1 Point & multipoint %rh & °C
Firmware update	With internet and HW4 software
User information	from Software HW4 (devicemanager)
Data processing via HW4	with interface cables
Device Protection by password	Yes
Type of output signals	2 x 0…1 VDC
Analogue outputs scaleable by the user	Yes
Analog output signal (standard)	0…1 V = 0…100 %rh; 0…1 V = -40…60 °C
Digital output signal (standard)	UART
Service Interface	UART
Reverse voltage protection	Mechanically in the connector
Probe material	Stainless steel 1.4305 (V2A)
Probe cable material	PTFE
Enclosure material	Polycarbonate
FDA/GAMP compatibility	FDA 21 CFR Part 11 and GAMP compatible
