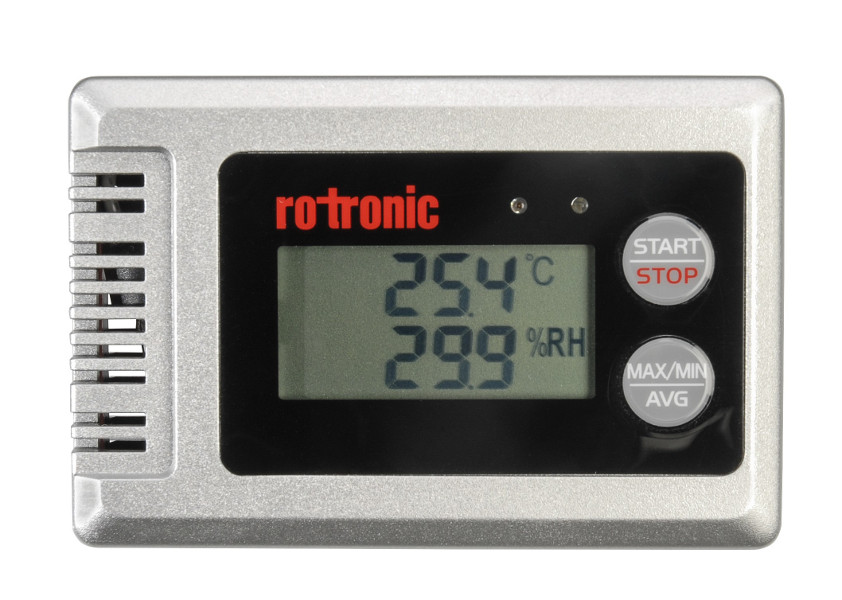

Rotronic HL1D Humidity & Temperature Data Logger
|
Item Number: HL-1D/TL-1D
Manufacturer: Rotronic
Part Number: HL-1D/TL-1D
Product Options
* denotes required field
Parameter Selection*
You must select an option for 'Parameter Selection'.
* Whole number only
|
|
Rotronic HL1D Humidity & Temperature Data Logger
Features
- Measurement accuracy of ±3.0 %RH and ±0.3 °C
- Compact design with a high IP protection
- Large storage capacity: 32,000 data point memory
- MIN/MAX/AVG statistical function
- Includes HW4-lite programming and analysis software
- Clear LCD with visual alerts
- Appropriately long battery life (3 years at logging interval of 5 min.)
- Conforms to FDA 21 CFR Part 11 / GAMP 5

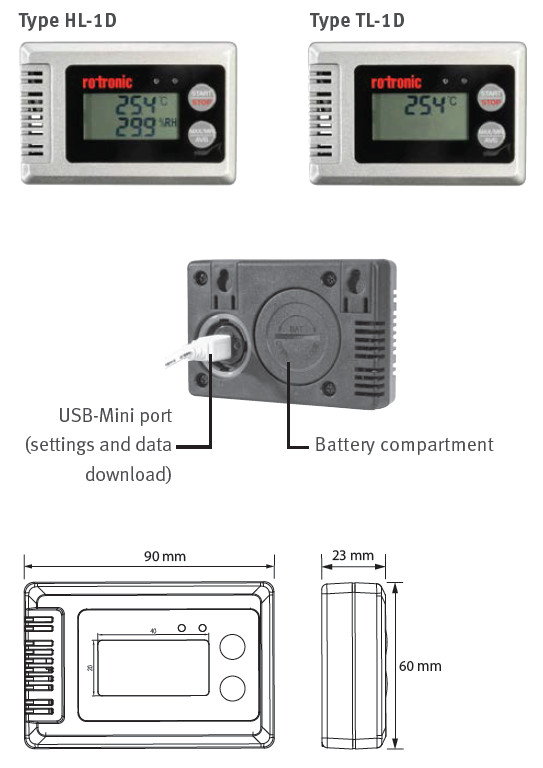

Dimensions & Ports Technical Specifications
Parameters
|
HL-1D: Humidity and temperature
TL-1D: Temperature |
| Temperature sensor |
NTC |
Humidity sensor
|
HL-1D: ROTRONIC HygroMer IN-1
TL-1D: -- |
Accuracy at 23 °C ±5 °C
|
HL-1D: ±3.0 %RH / ±0.3 °C
TL-1D: ±0.3 °C |
| Range of application |
-20…70 °C / 0…100 %RH |
| IP rating |
IP67 |
| Weight |
85 g |
| Dimensions |
90 x 60 x 23 mm |
| Logging interval |
30 s…24 h |
| Battery |
1 x CR2 |
| Battery life |
3 years at a logging interval of 5 minutes |
| Battery charge indicator |
Yes (HW4 software, display and LED indicator) |
Storage capacity
|
HL-1D: 16,000 data point memory (RH & T)
TL-1D: 32,000 data point memory (T) |
| Function |
MIN/MAX/AVG statistical data |
| Display |
LCD, 2 lines, 1 decimal resolution |
Display refresh rate
|
5 sec. (Standard)
Same as Logging interval |
LED indicator
|
2 LEDs
Right LED flashes green during data logging
Left LED flashes red when alarm limits
breached or low battery |
| Communication |
USB-Mini port |
| Adjustment |
Humidity 1-point |
| FDA/GMP compatibility |
Conforms to 21 CFR Part 11 and GAMP5 |
| Software |
HW4 V3.4.1 or later |
Included
|
- CR2 Battery
- Short instruction manual
- Function and calibration certificate
- HW4-lite software key code (software to be
downloaded from www.rotronic.com) |
|
