Reed Instruments Model H Precision Speed Indicator, Tachometer
|
Item Number: H
Manufacturer: Reed Instruments
Part Number: H
|
|

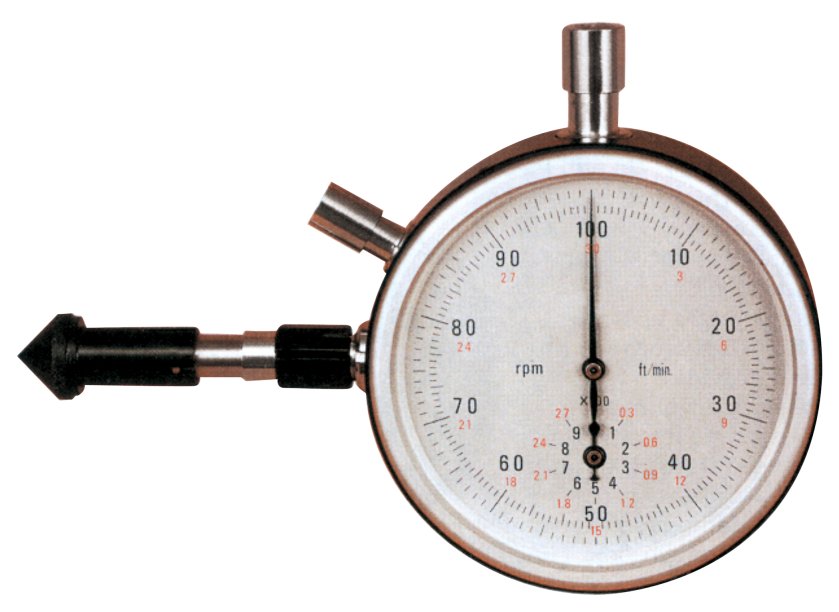

Reed Instruments Model H Precision Speed Indicator
The instrument has a large, easy-to-read dial, with black figures indicating revolutions per minute and red figures on the inner circle indicating feet per minute readings, without any calculations.
This precision speed indicator is a high precision indicator for the accurate measurement of revolutions per minute or linear speeds in feet per minute. Being of the chronometric type, with a built-in timing element operating over a fixed period of three seconds, this speed indicator is especially suitable for accurate measurements of constant speeds. Accuracy is ±0.5% over a range of 0 to 10,000 rpm and 0 to 3,000 fpm.
The instrument operates in a totally automatic fashion. Once the start button is depressed, the indicator will begin to register revolutions over a fixed period of three seconds. The hands then stop and the reading may be taken from the dial at leisure. The pointer remains in a fixed position until returned to zero by depressing the reset button.
Specifications:
| Contact Range: |
5 to 10,000 rpm |
| Surface Speed Range: |
0 to 3,000 fpm |
| Accuracy: |
±0.5% |
| Sampling Rate: |
1/3 Seconds |
| Dimensions: |
3 x 2.5 x 1" |
| Weight: |
12.8 oz |
|
